Housed in a corrosion-resistant stainless steel/cold-rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communication is maintained at all times.
Housing has a grounding device and is completely electrically isolated from the internal circuit, with a certain electromagnetic shield- ing effect, and the voice is clear and loud during the call, without whistling back. Armored "cord" provides additional resistance to vandalism or heavy industrial use.
The series telephones are designed to meet the needs of clients who experience losses due to vandalism. Ideal for parking lots, prisons, airports, railway, metro, ATMs machines, platforms, hospitals, police stations, shopping mall, stadiums, etc.
Analog Specification | |
Power supply | Drawn from telephone line |
Operating voltage | 24 VDC to 65 VDC |
Operating current | 20 mA DC to 100 mA DC |
Ringer operating voltage | 48 VAC to 90 VAC (calling frequency 21 to 54 Hz) |
Ringing volume | 80 dB (A) @ 1 meter |
Dialing method | PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23 |
Lightning / Transients | Protection to ITU-T K.21 enhanced levels |
Programming | It can be programmed remotely via DTMF tones or the keypad |
Technical Specifications | |
Compatible with all the standard PABX systems | |
Remote programming allows you to manage your network from a central location | |
Programmable auto hang-up timer | |
Supports automatic dialing with delay after picking up the phone | |
Supports scheduled dialing to the central control phone to detect whether the phone is working properly | |
Supports one relay to remotely control external devices | |
Can be adapted according to the model of the Analog PABX to support the sequential calling function | |
Phone line powered | |
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C | |
M.T.B.F. exceeds 50,000 hours under normal operating conditions |
Metro
Airport
Bus station
Ship
Business center
Prison
Hospital
School
Package | |

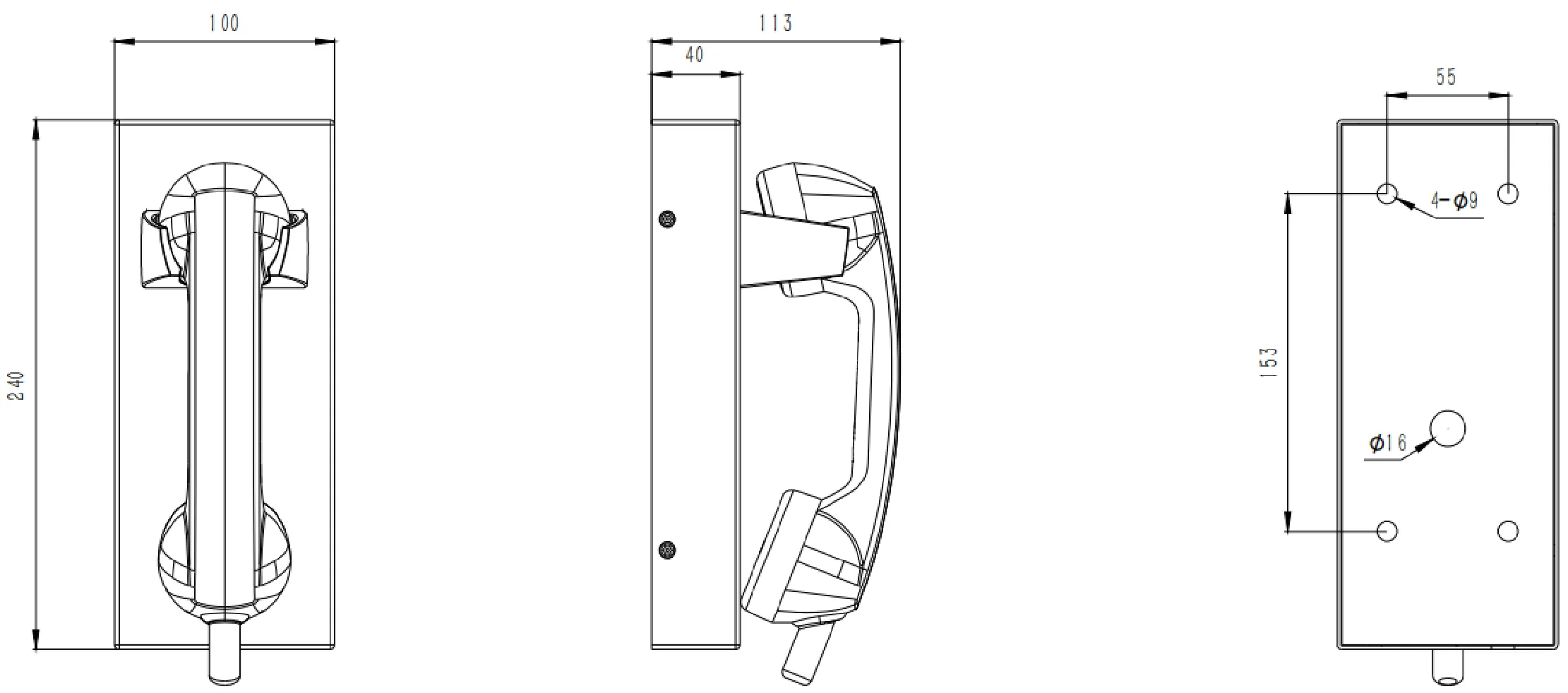

Unit size | 240*100*113 (mm) |
Shipping dimensions | 340*220*165 (mm) |
Packaging materials | Foam padding, carton |
Weight | Net weight: 3 kg / Gross weight: 4 kg |
