Wind Power Planrts Communication Solutions

Wind Power Plants
Project Background

Wind farms are typically located in remote areas with complex terrain and widely dispersed turbine sites. Timely and effective communication among personnel is crucial during daily operations, equipment maintenance, and emergency response. Harsh natural conditions such as strong winds, low temperatures, and dust storms place high demands on the stability and reliability of communication equipment. Additionally, the complex electromagnetic environment inside turbines can interfere with communication signals. To ensure the safe and efficient operation of wind farms, a stable, reliable, and environment-adaptive intercom system is indispensable.

Requirements Analysis

Environmental Adaptability:

The system equipment must operate reliably under extreme temperatures, strong winds, dust storms, and other harsh natural conditions, while also possessing strong electromagnetic interference resistance to cope with the complex environment inside wind turbines.

Wide Coverage:

Given the vast area of the wind farm and the dispersed distribution of turbines, the intercom system must ensure seamless, no-dead-zone communication coverage across the entire site, allowing personnel at any location to communicate smoothly with the control center and other areas.

Rapid Response:

In emergencies such as equipment failure or personnel accidents, staff must be able to quickly send distress signals, and the control center should immediately respond and initiate emergency procedures.

Ease of Operation:

Considering that personnel work at heights and in confined spaces within turbines, the system should be simple and intuitive to operate, facilitating use even in emergency or complex environments.

System Compatibility:

The intercom system must integrate effectively with existing monitoring systems and management software at the wind farm, enabling data sharing and coordinated operation.

Key Communication Technologies and Principles

SIP (Session Initiation Protocol) Technology

Function: In the wind power intercom system, SIP is responsible for establishing, managing, and terminating communication sessions between devices. The SIP server acts like a traffic controller, coordinating various communication requests and enabling voice and video communication between devices.
Principle: When a phone with a warning light initiates a call, it sends an INVITE message to the SIP server containing the caller and callee information. The SIP server authenticates and authorizes the caller; once verified, it locates the callee and forwards the INVITE message. If the callee (e.g., the dispatch console) accepts the call, it responds with a 200 OK message, thereby establishing the communication link and enabling the call.

IP Communication Technology

Function: Converts voice, data, and other information into IP packets for transmission over wired or wireless networks. This allows devices like dispatch consoles, emergency phones, and phones with warning lights to communicate over a network-based connection.
Principle: Devices digitize voice signals and encapsulate them into data packets following IP protocols. These packets travel through routers, switches, and other network equipment. For example, an intercom phone inside a turbine tower converts voice into packets sent via wired network to the SIP server at the control center, which then forwards the packets to the target device. The receiving device decapsulates the packets and restores the original voice signal.

Wireless Local Area Network (WLAN) Technology

Function: Provides flexible communication for mobile workers in the wind farm. By deploying wireless access points (APs), staff can communicate with the control center and colleagues anytime during mobile tasks like inspections.
Principle: Wireless APs act as a bridge between wired and wireless networks, connected to the wired network infrastructure. Mobile terminals (e.g., handheld devices with wireless capability) communicate with the AP on designated frequency bands. The AP converts wireless signals into wired network signals for transmission. Multiple mobile devices can connect to the AP simultaneously, with the AP managing channel allocation and power to maintain network stability and communication quality.

Solution Design and System Architecture

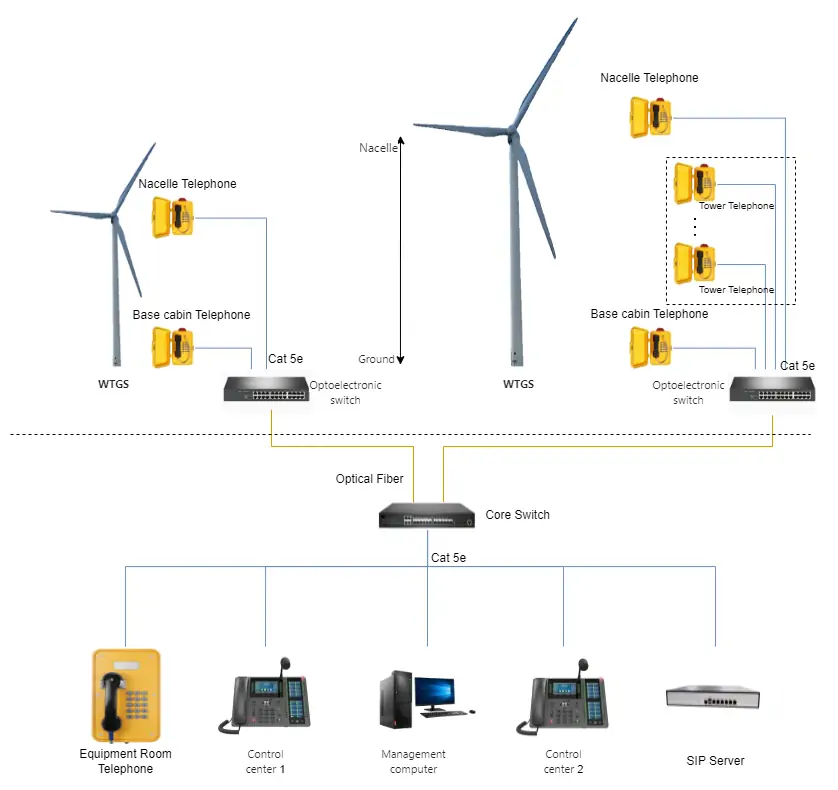

The wind power intercom system architecture is built around the wind turbines and the management control center to form a communication network: intercom phones are deployed at the nacelle, lower cabin (including parts of the tower) as front-end nodes, which connect through optoelectronic switches (providing optical-electrical conversion and preliminary forwarding) to the core switch that forms the backbone link, bridging front-end devices with the control center. The control center is equipped with intercom terminals, management computers, and a SIP server (responsible for protocol adaptation and communication scheduling). This architecture enables stable voice intercom between the turbine sites, control center, and equipment rooms, meeting wind farm operation and maintenance dispatch requirements, while maintaining clear structure and ease of deployment and maintenance.

System features

Emergency Alarm Function

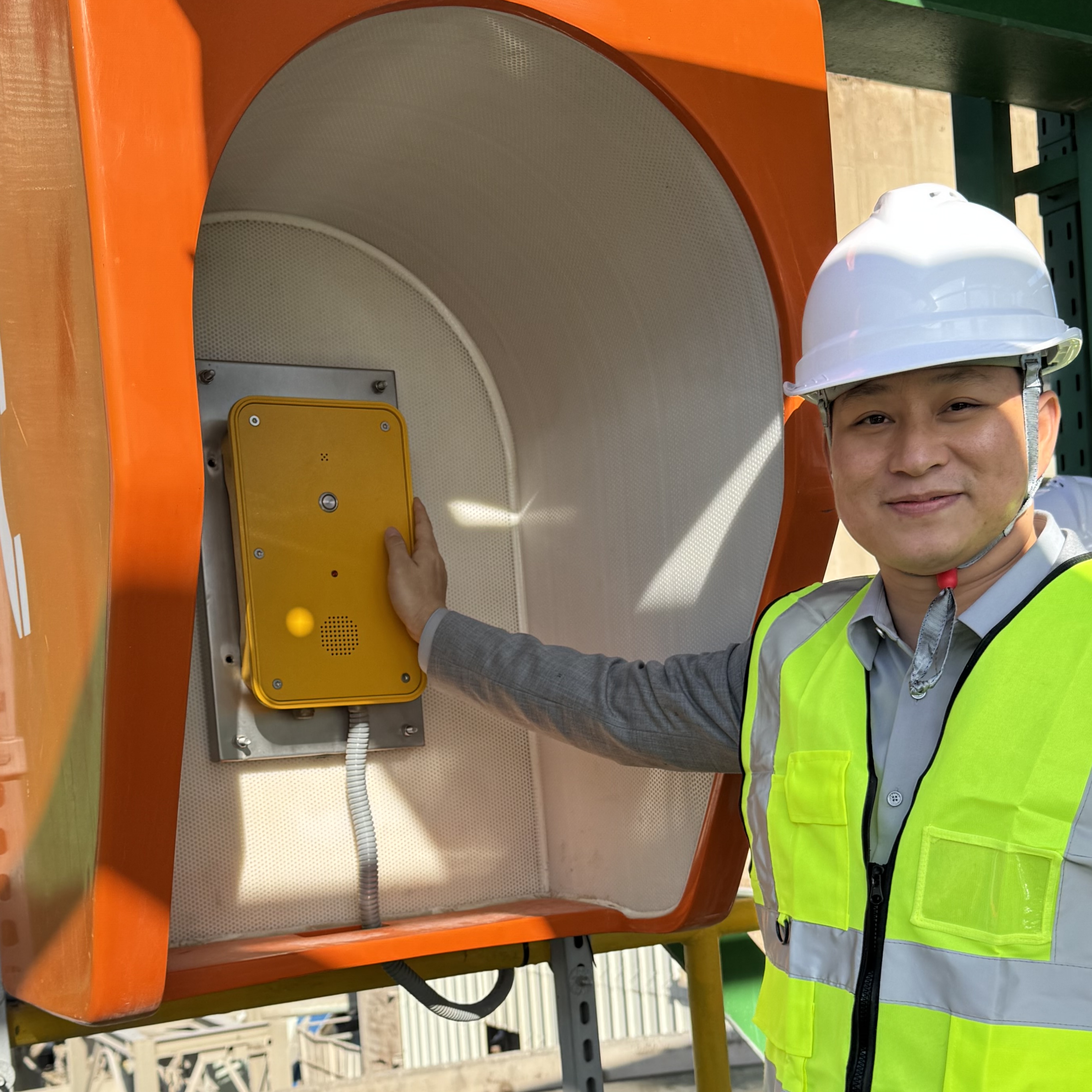

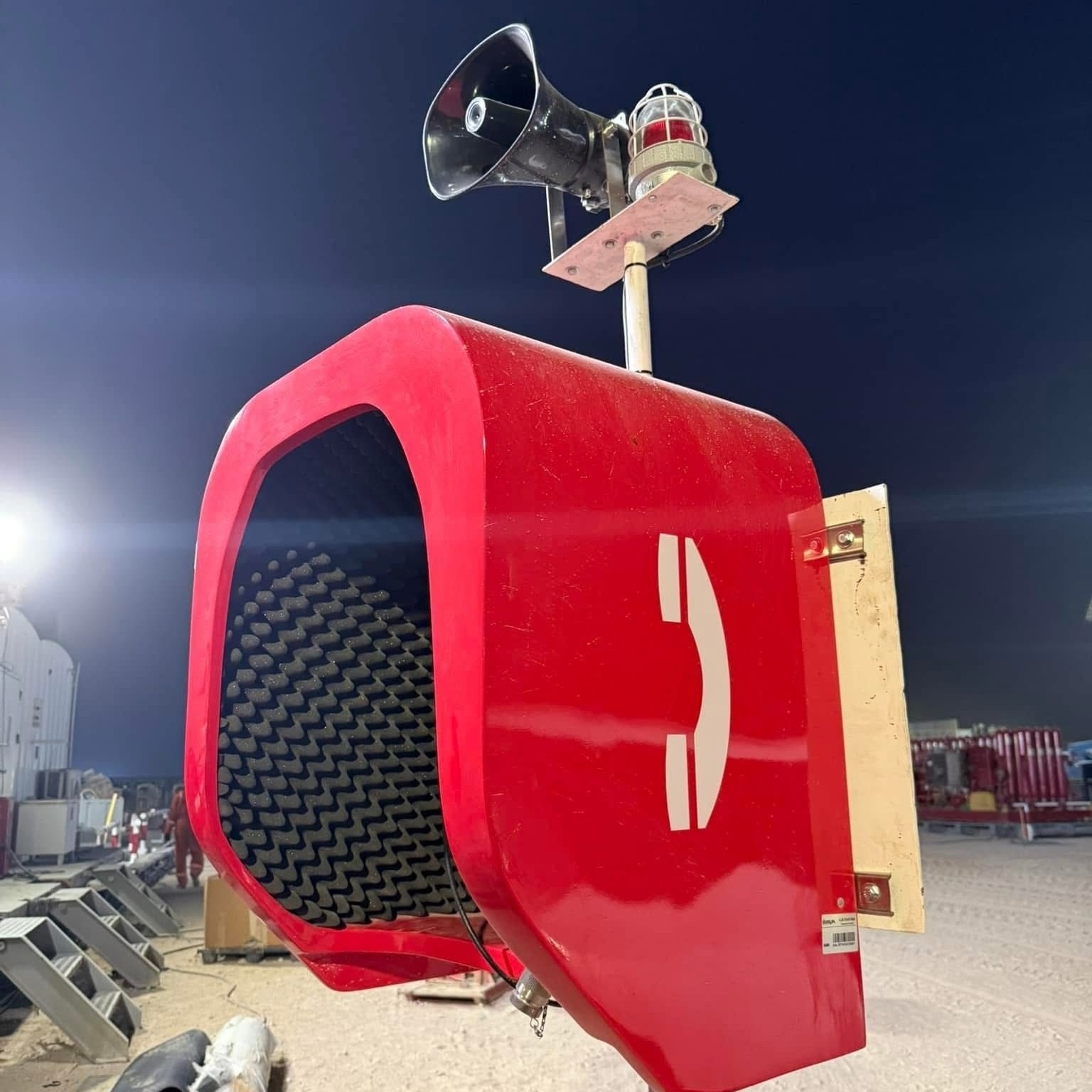

When staff encounter an emergency at a wind turbine or other area, pressing the alarm button on the phone with warning light causes the warning light to flash immediately and sends an alarm signal to the emergency call phone. Upon receiving the alarm, the emergency call phone displays the alarm location and triggers the audible and visual alarms at the control center. Dispatchers can quickly communicate with the alarm initiator via the dispatch console to understand the situation and initiate emergency rescue.

Voice Communication Function

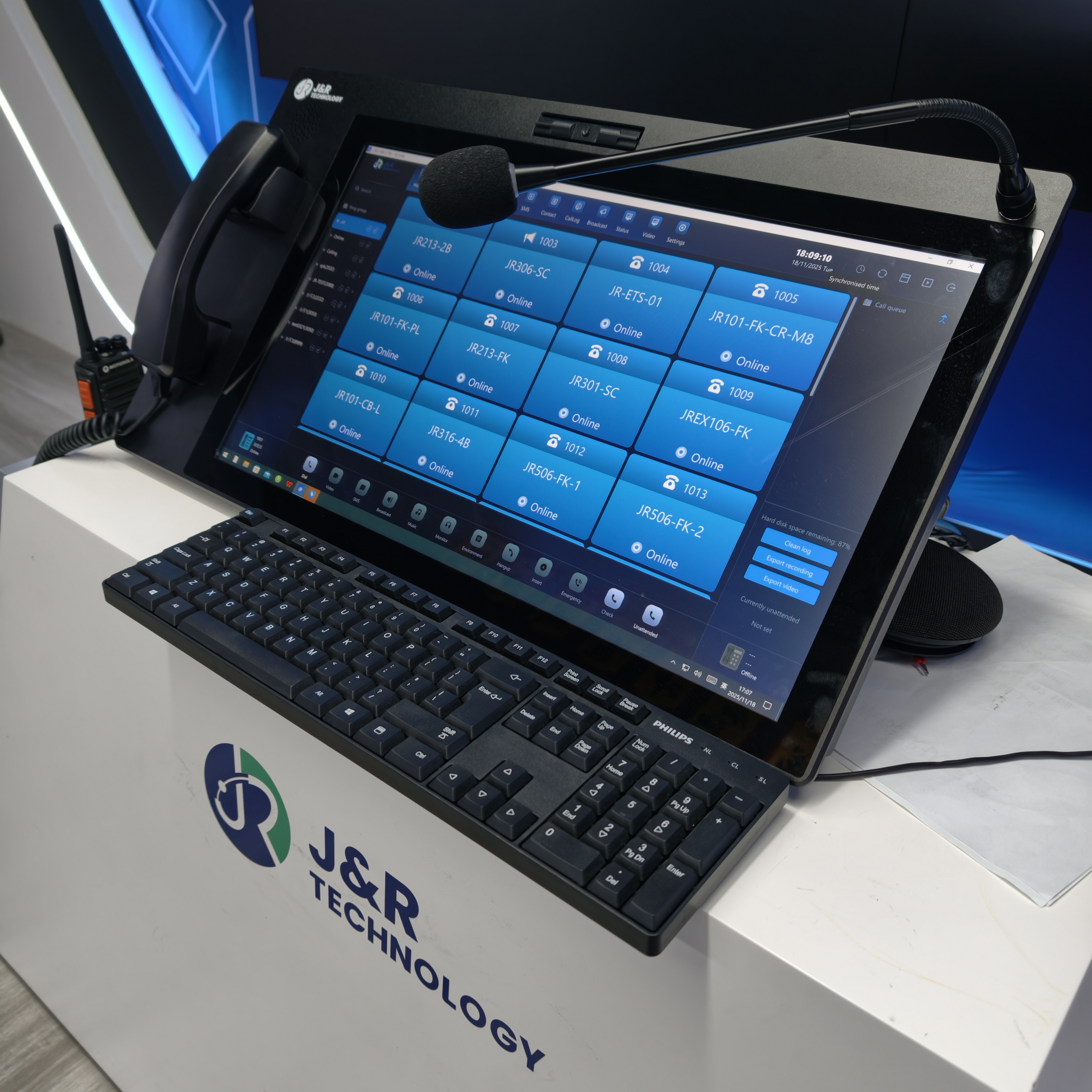

Dispatch personnel at the control center can make one-to-one calls via the dispatch console to phones with warning lights at wind turbines, distribution rooms, and other areas to issue work instructions or inquire about equipment status. On-site workers can also communicate internally through the phones to facilitate coordination during maintenance, troubleshooting, and other operations.

Broadcast Notification Function

Using the dispatch software, dispatchers can send voice broadcast notifications to all or selected phones with warning lights across the site. Notifications may include equipment maintenance alerts, safety reminders, emergency evacuation orders, etc. Broadcasts can be delivered via real-time voice recording or pre-recorded voice files, ensuring timely and accurate message delivery.

Video Linkage Function (If Supported by Phone)

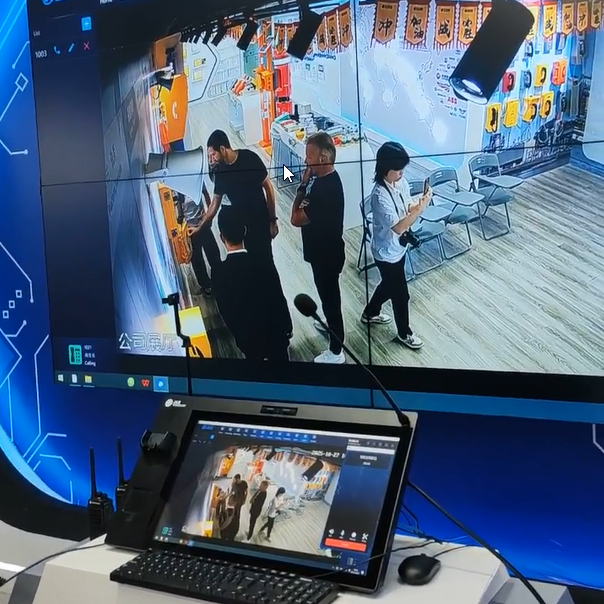

If the phone with warning light is equipped with video functionality, on-site personnel can activate video transmission during emergencies, sending live footage to the dispatch console. Dispatchers can monitor the video in real time for a clearer understanding of the situation, enabling accurate decision-making and improving emergency response efficiency.

Device Status Monitoring Function

The dispatch software monitors the operational status of phones with warning lights, SIP servers, and other equipment in real time, including online status and signal strength. If faults or abnormalities are detected, the software promptly issues alerts to notify maintenance staff, ensuring the system operates normally.
