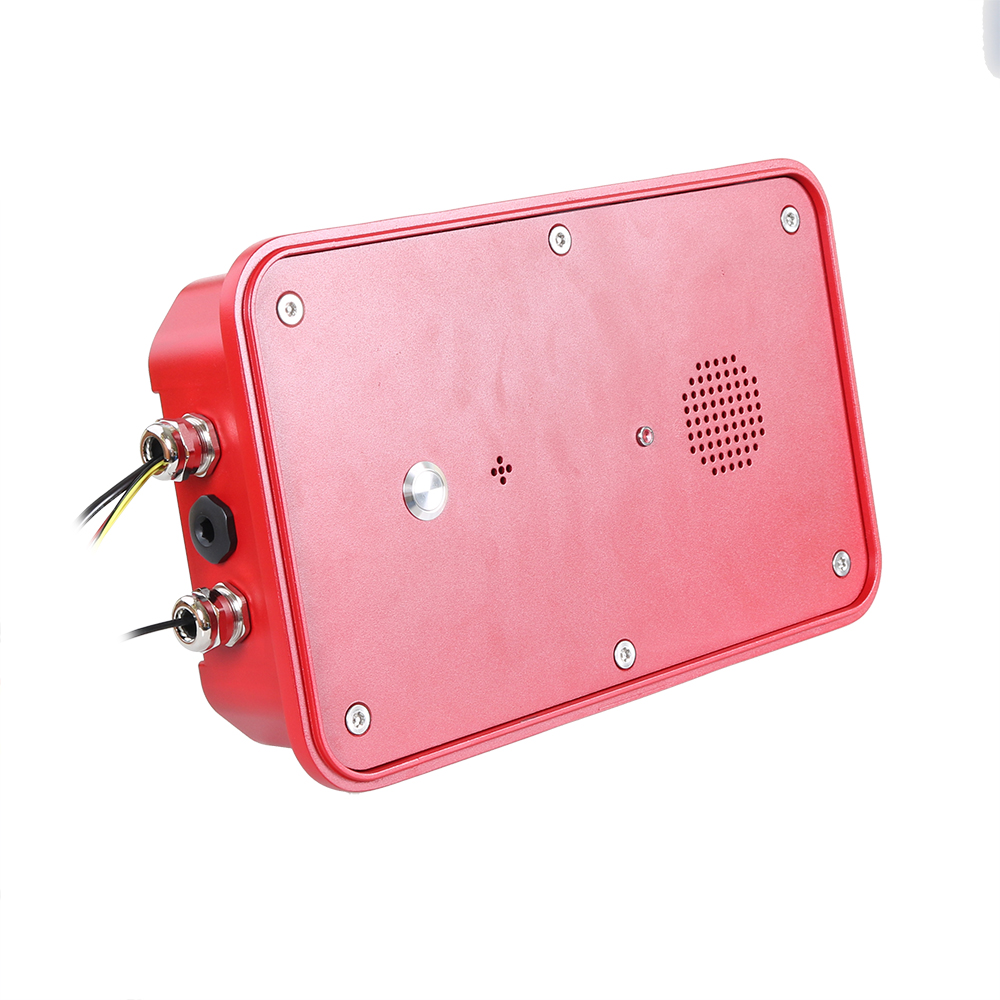

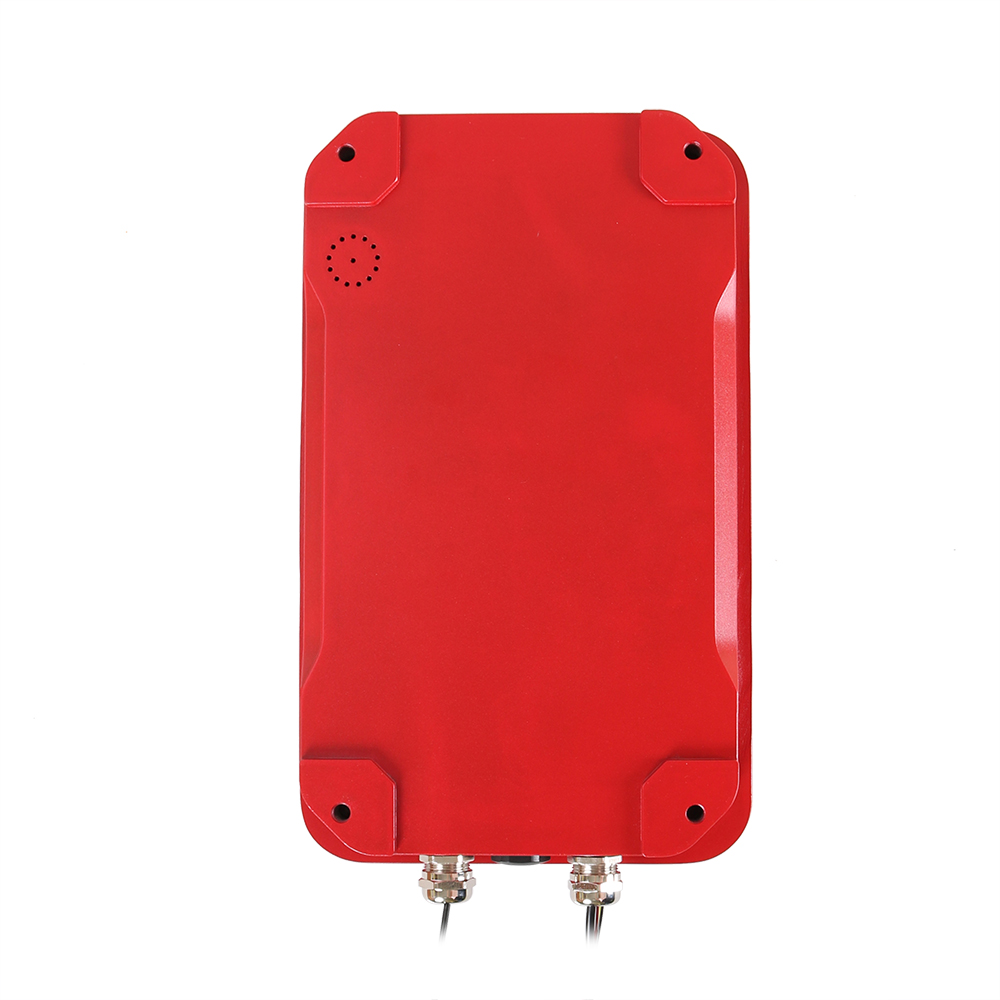

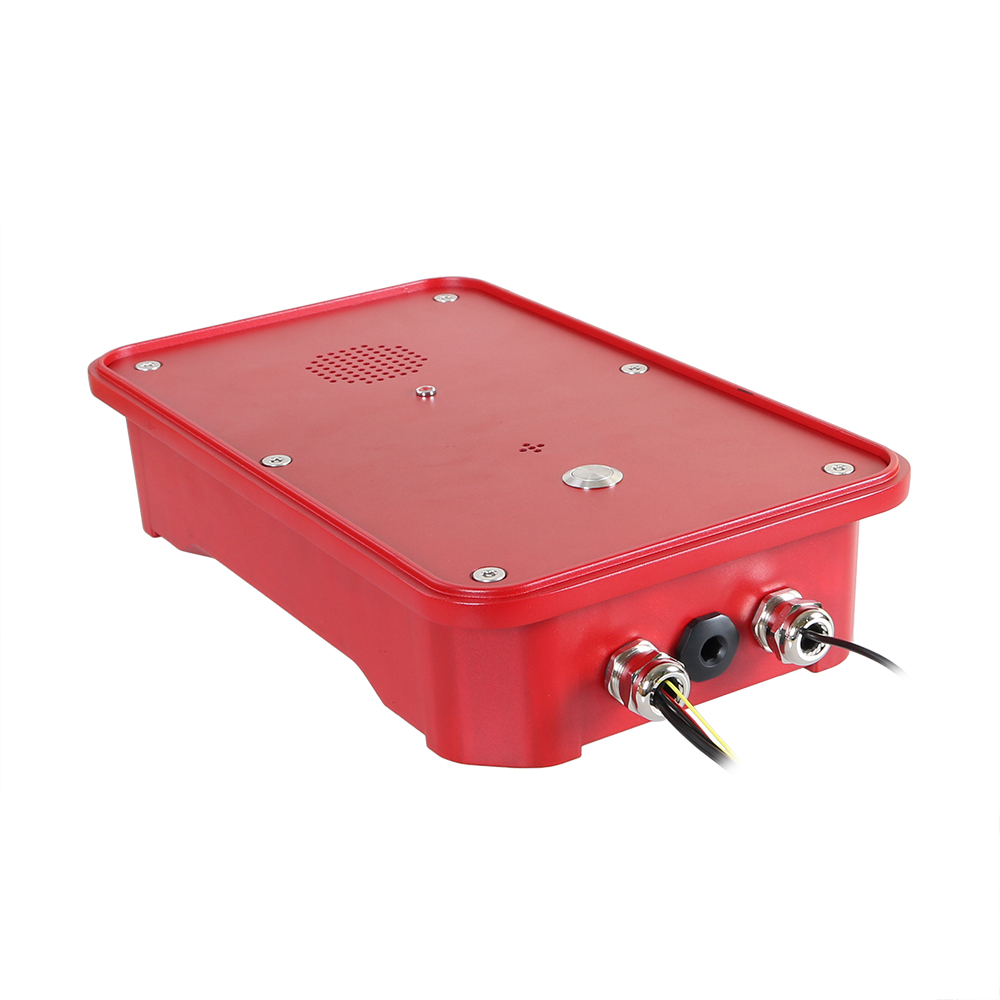

It was designed for public and industrial areas requiring a virtually indestructible telephone. The housing is made of die-cast aluminum alloy, with a weatherproof enclosure and an exterior polyurethane finish. It is designed to withstand high levels of humidity, dust, vibration, shock, extreme temperatures, (salt)water, abuse or attempted vandalism.
Typical applications include Outdoor Environments, Public Highways, Underground Tunnels / Mining, Offshore Wind Farms, Production Floors, Chemical Processing Sites, Power Stations or inside large Lifting Machinery such as Quayside Container Cranes, Rubber-Tyred Gantry Cranes (RTGs) and bulk-material Ship Loaders.
Analog Specification | |
Power supply | Drawn from telephone line |
Operating voltage | 24 VDC to 65 VDC |
Operating current | 20 mA DC to 100 mA DC |
Ringer operating voltage | 48 VAC to 90 VAC (calling frequency 21 to 54 Hz) |
Ringing volume | 80 dB (A) @ 1 meter |
Dialing method | PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23 |
Lightning / Transients | Protection to ITU-T K.21 enhanced levels |
Programming | It can be programmed remotely via DTMF tones or the keypad |
Technical Specifications | |

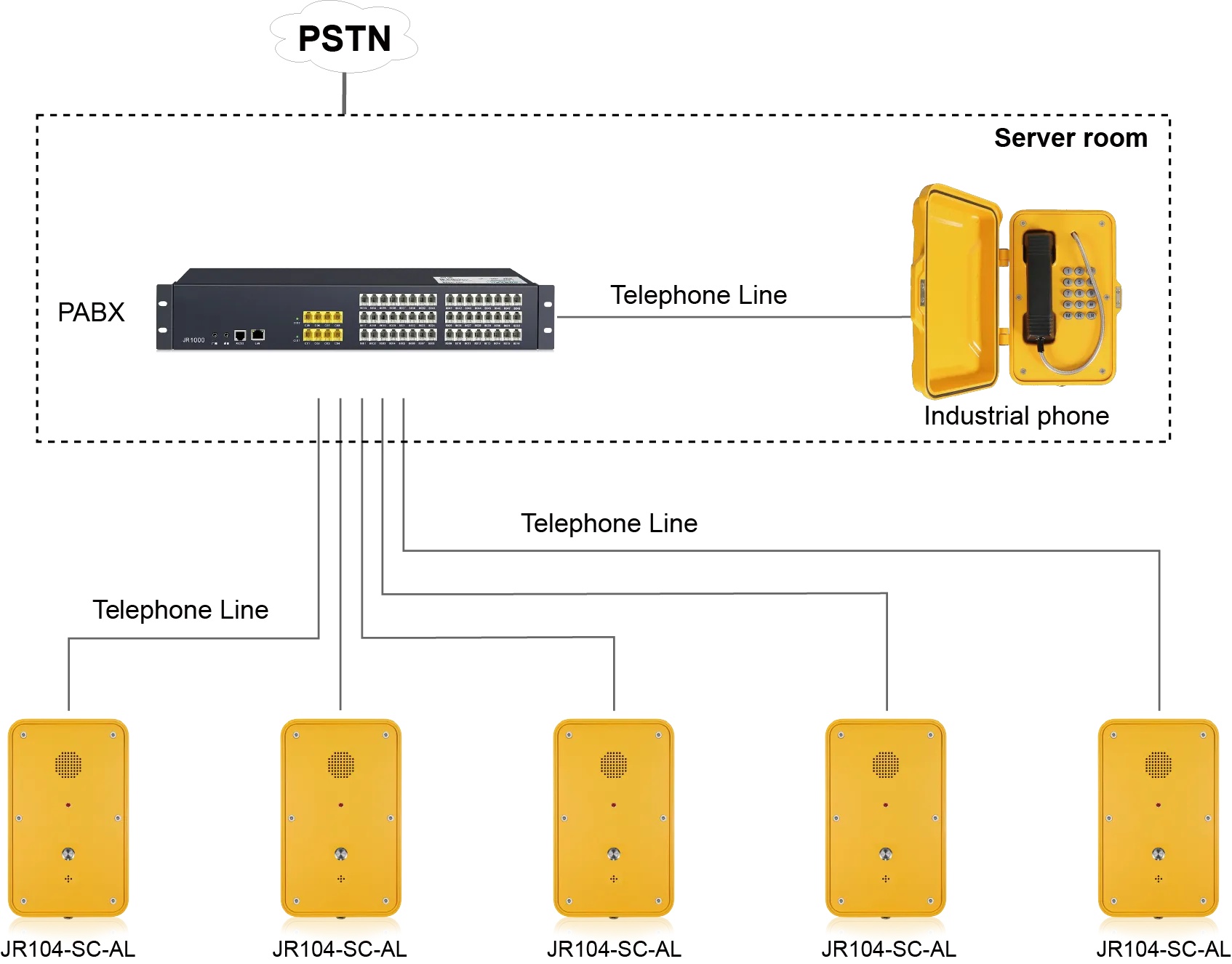

Compatible with all the standard PABX systems | |
Remote programming allows you to manage your network from a central location | |
Programmable auto hang-up timer | |
Supports scheduled dialing to the central control phone to detect whether the phone is working properly | |

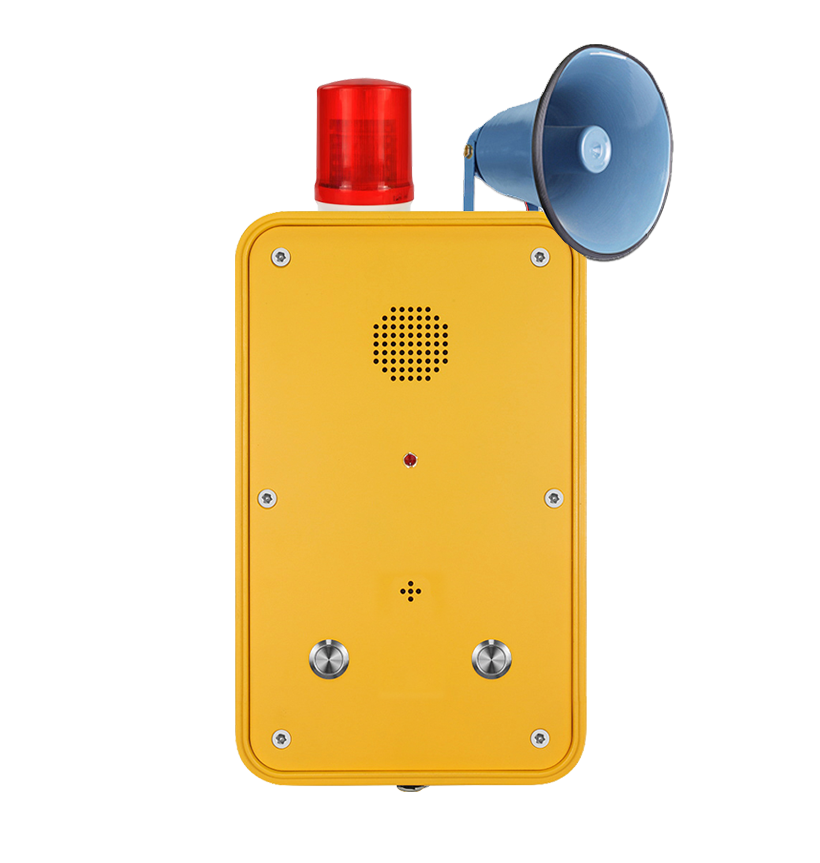

Supports the telephone line to power external light fixed on the top (no external power supply needed) | |
Supports one relay to remotely control external devices | |
Can be adapted according to the model of the Analog PABX to support the sequential calling function | |
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C | |
M.T.B.F. exceeds 50,000 hours under normal operating conditions |
Port
Ship
iHghway / Tunnel

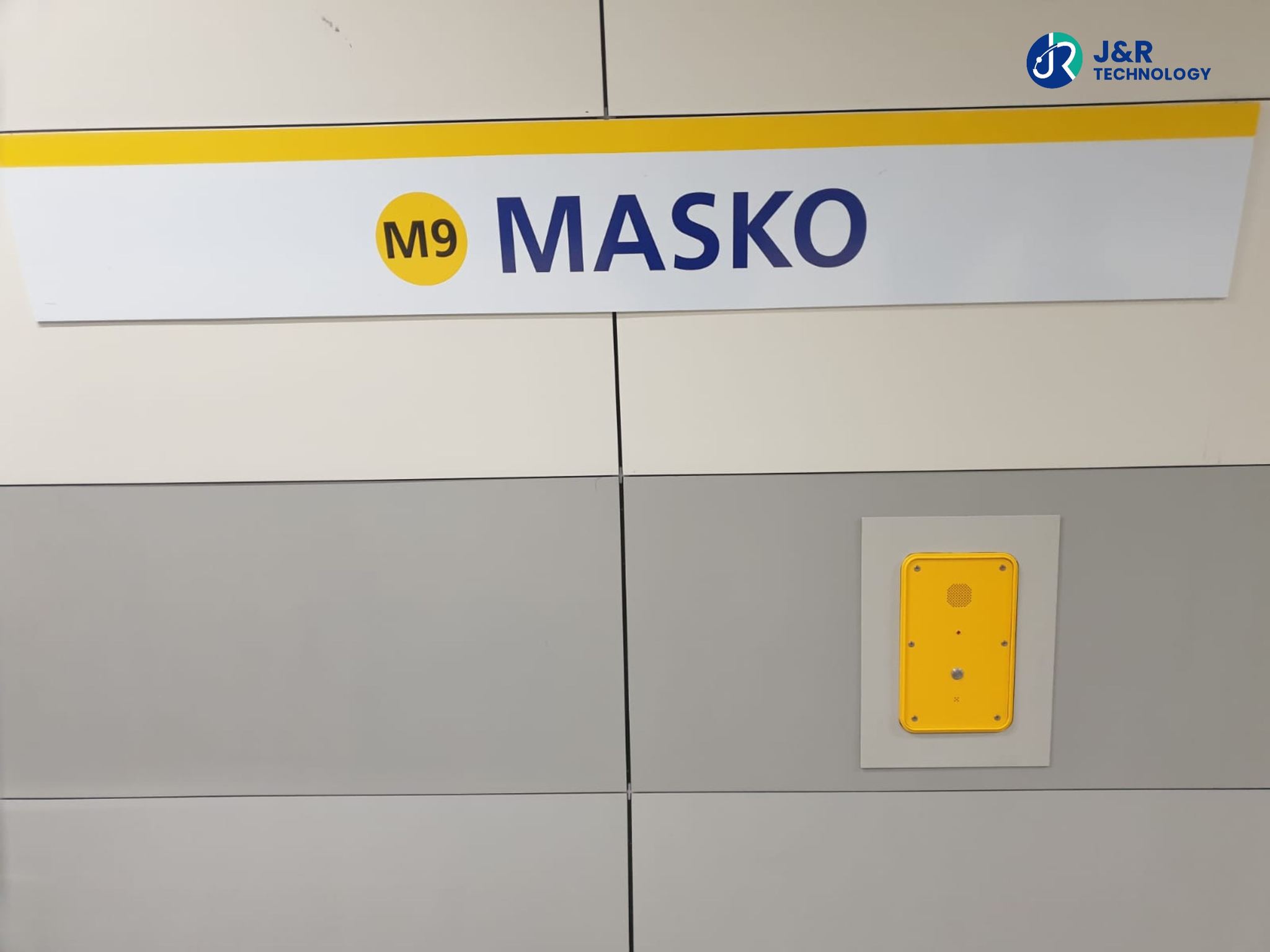

Railway
Generating station
Mining industry
Industrial park
Heavy industry
Package | |

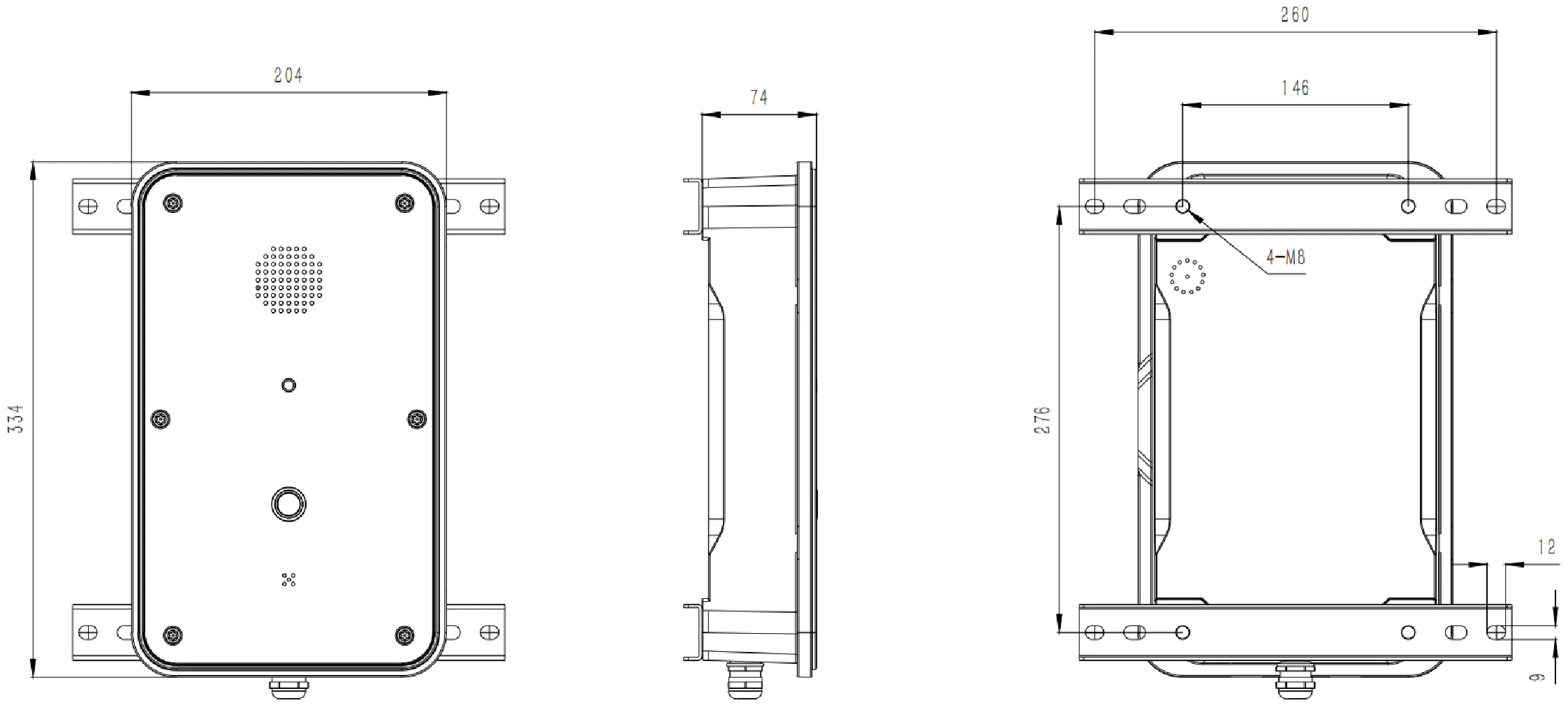

Unit size | 334*204*74 (mm) |
Shipping dimensions | 200*300*440 (mm) |
Packaging materials | Foam padding, carton |
Weight | Gross weight: 6 kg / Net weight: 5 kg |
