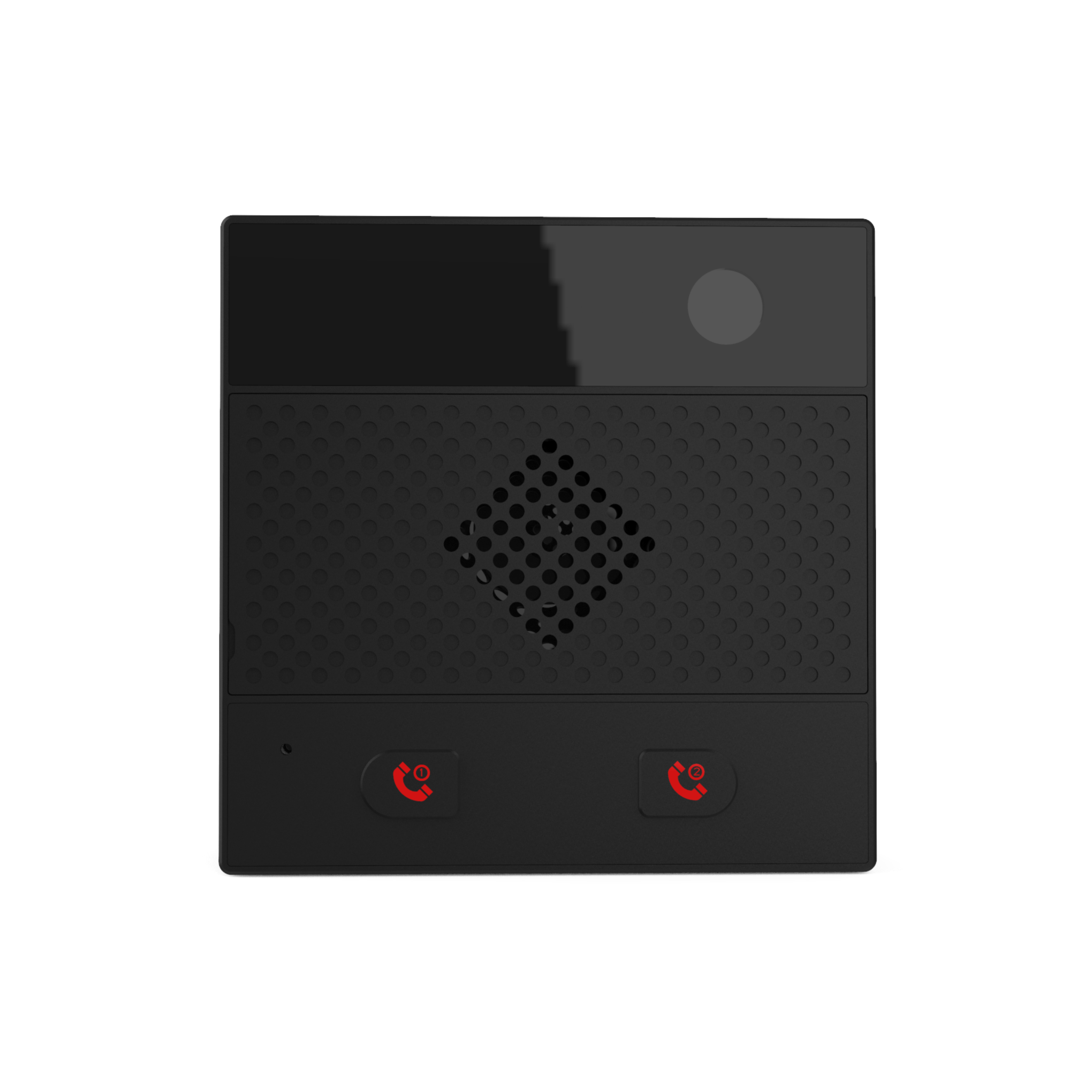

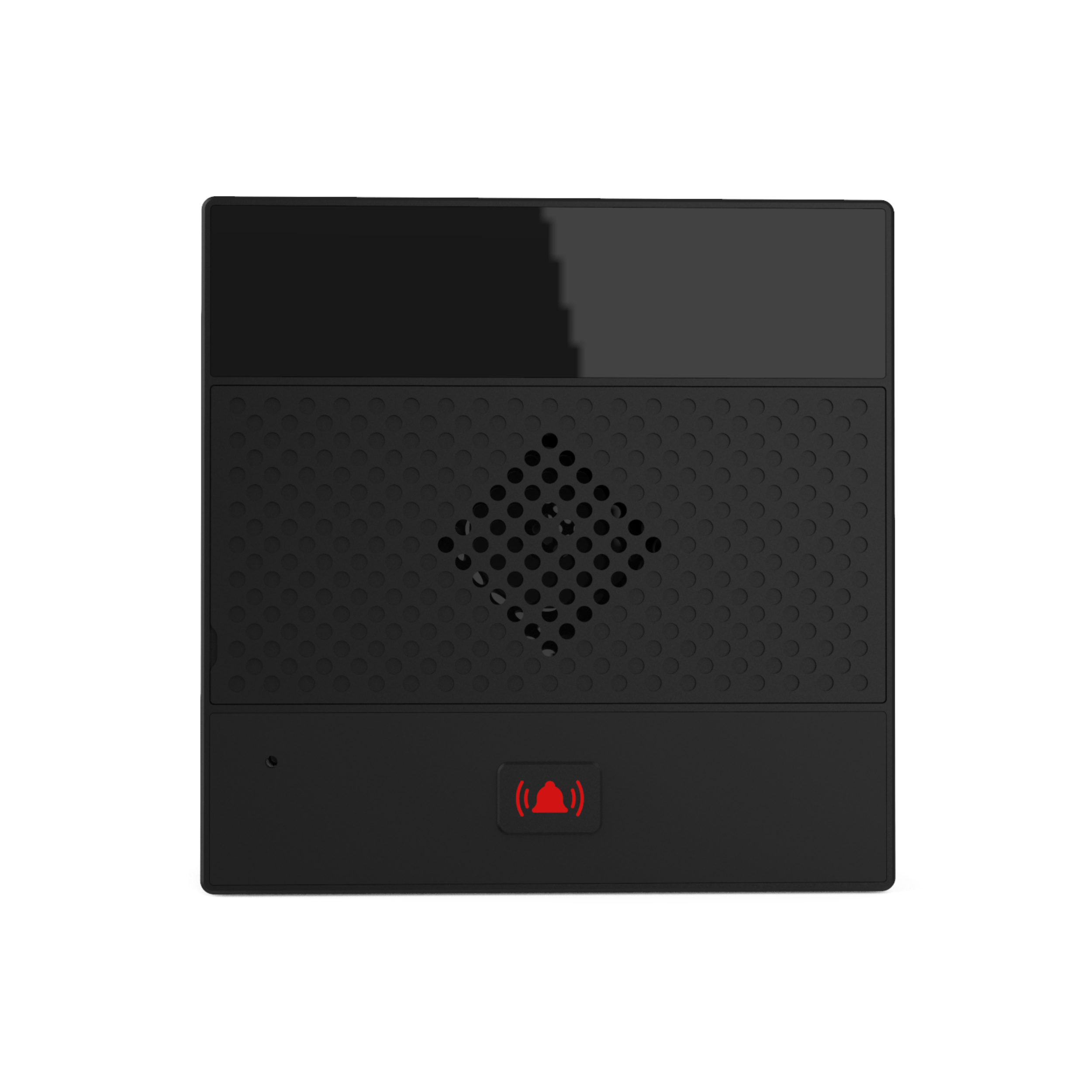

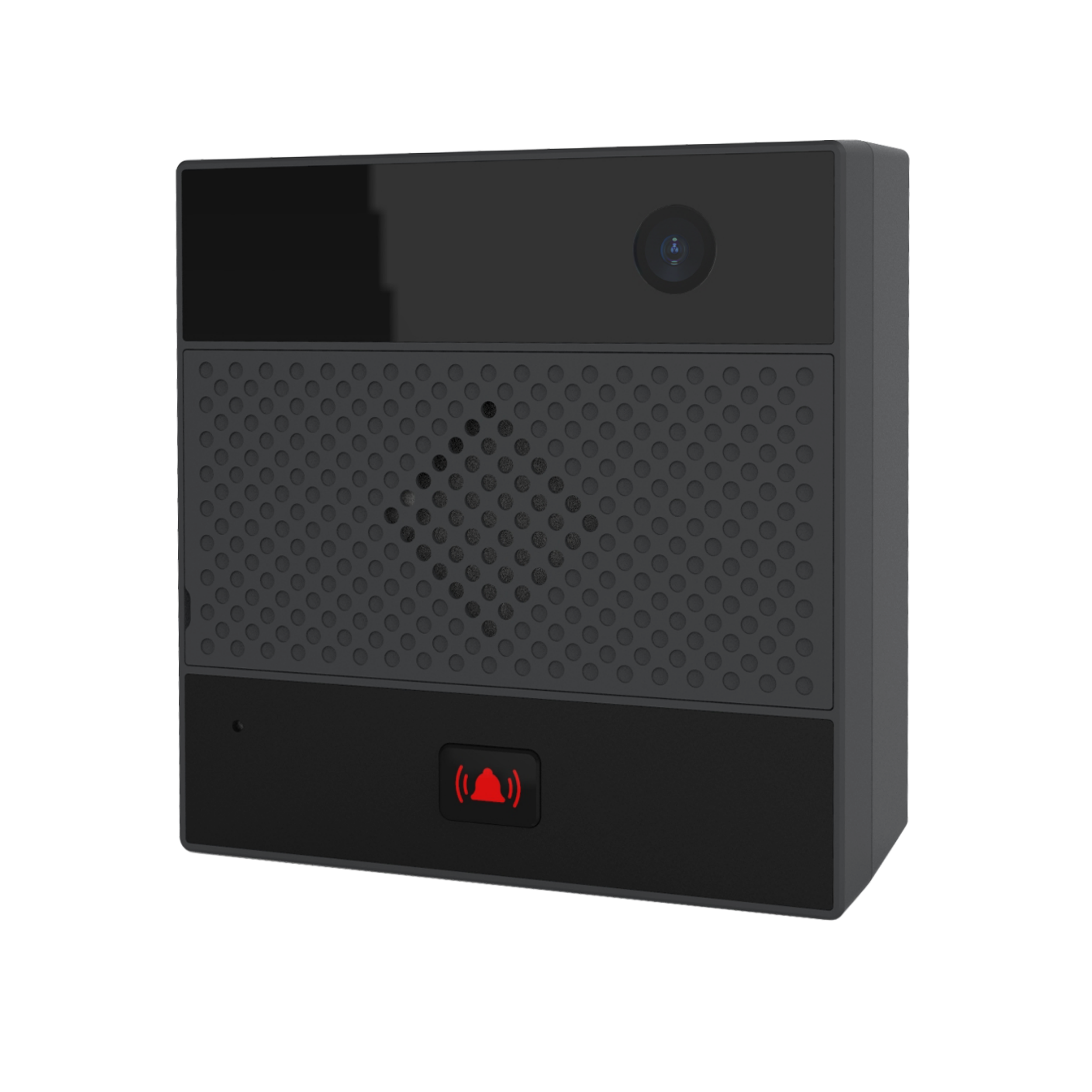

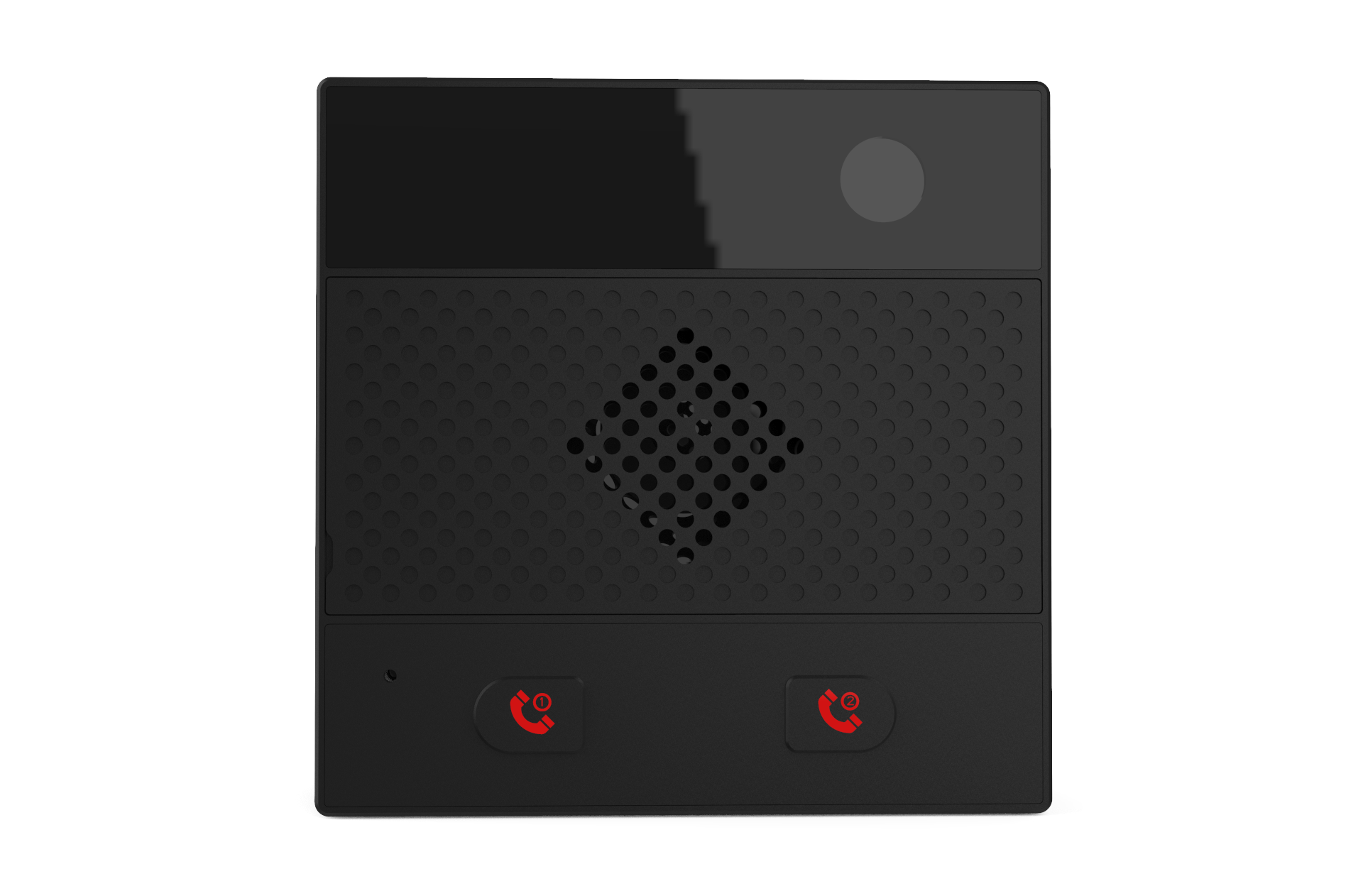

Video Mini Intercom K86

  • Standard SIP telephone
  • Simple installation and configuration
  • Noise-canceling microphone
  • Built-in 2W speaker
  • Hands-free and full-duplex, HD audio
  • CE, FCC, RoHS, ISO9001 standards
  • Dimensions: 86*86*33mm, carton packing
  • HD camera with H.264 code
  • (K86-C) One speed-dial button with LED indicator (illuminated during calls)

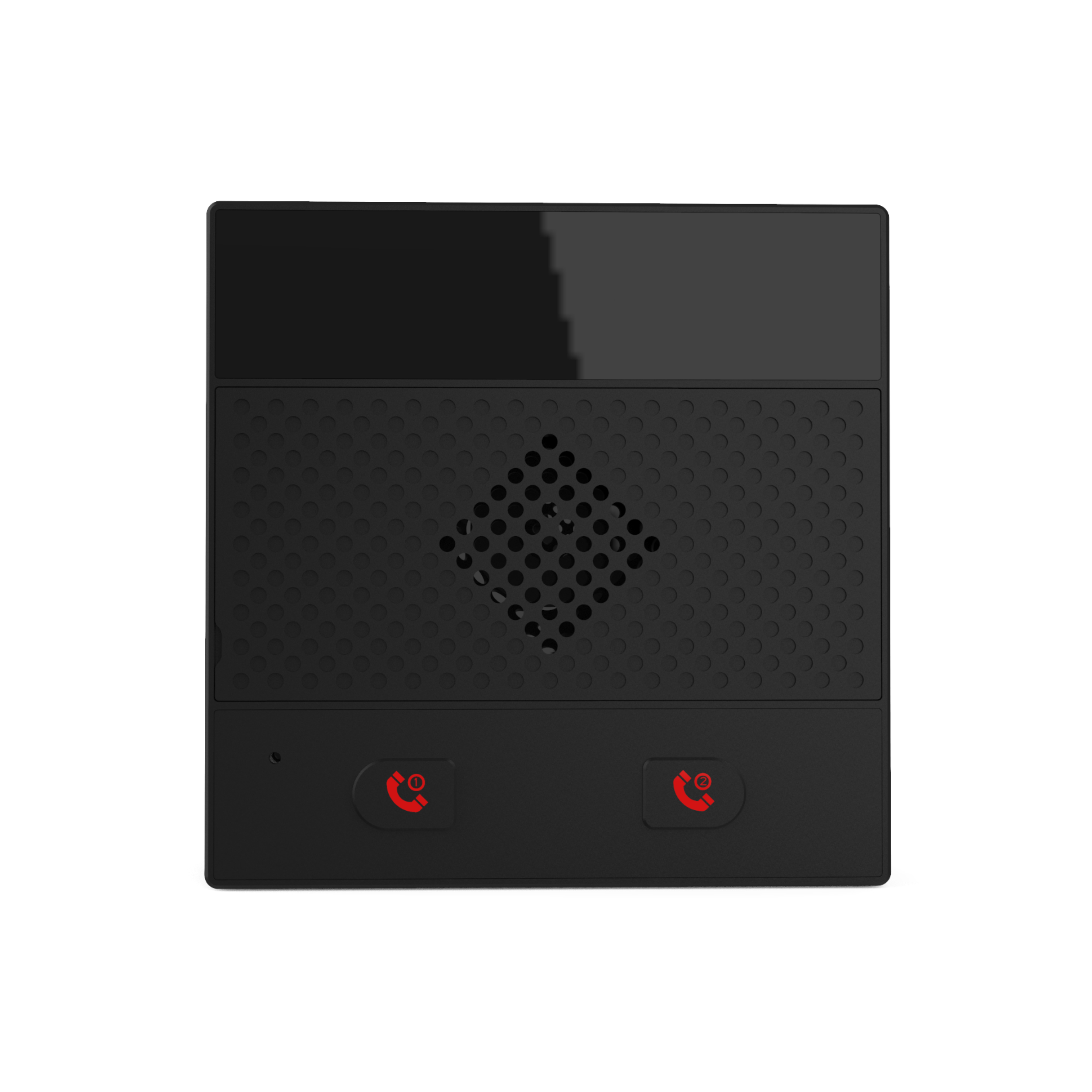

  • (K86-2C) Two speed-dial buttons with LED indicator (illuminated during calls)
  • Protection level IP54
  • Designed with a standard 86-size form factor, compatible with standard 86-type flush and surface-mounted electrical boxes, ensuring strong versatility
Get Pricing/info Download

Main Features

The K86C video intercom terminal, with its compact ABS housing, offers powerful features such as one-touch door release, two-way audio communication, and broadcast notifications, catering to various needs with high cost-effectiveness.

It supports wall mounting, has an IP54 protection rating, and is suitable for indoor use, providing reliable communication services.

Product Video

Technical Specifications

SIP Specifications
Power supply PoE powered
Power consumption Idle 1W / Working 2.4W
SIP protocol SIP 2.0 (RFC3261)
Network port parameters WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX
Voice codecs G.711 a / u、G.722 8000/16000、G.723、G.729、G.726
Communication mode Full duplex
Ringing volume 90 dB (A) @ 1 meter
Technical Specifications
Compatible with most SIP-based IP-PBX servers that comply with SIP RFC 3261
PoE 802.3af enabled (Power-over-Ethernet) or external power supply
Supports automatic switching between primary and backup servers
Supports remote Telnet debugging
Supports two relays to remotely control external devices
Operating temperature -40˚C to 65˚C
Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
Network Web Management
Fully configurable through any internet browser
Static IP address provisioning or DHCP support
Product self-diagnostic testing available through the web interface
Network-adjustable earpiece volume and microphone sensitivity
Firmware upload via web interface
Echo cancellation: Supports G.168, and hands-free can support 96ms
Supports SIP domain, SIP authentication (none, basic, MD5), and DNS name of server
DTMF: SIPINFO, INBAND, RFC2833
Network Features
Automatically broadcasts IP address after successful network connection
Supports web interface backend, the intercom can be configured through webpage
Data Protocols: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP IP Assignment,IEEE 802.1p/Q, QoS/ToS,
HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP
Camera Specifications
The most effective pixel 1920 (H) *1080 (V)
Lens specifications size 1/4, aperture: F2.5, Focus: 2.5mm, FOV: 80 degrees
Power supply and interface USB BUS powered

Optional Accessories

No related content

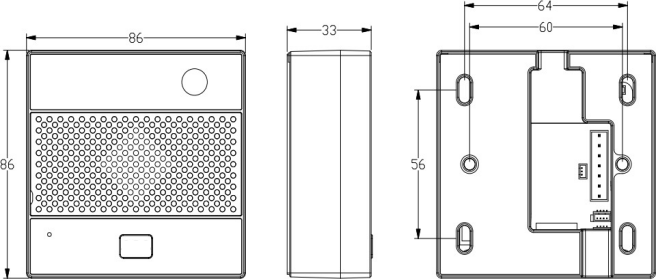

Dimensions

Product Recommendations

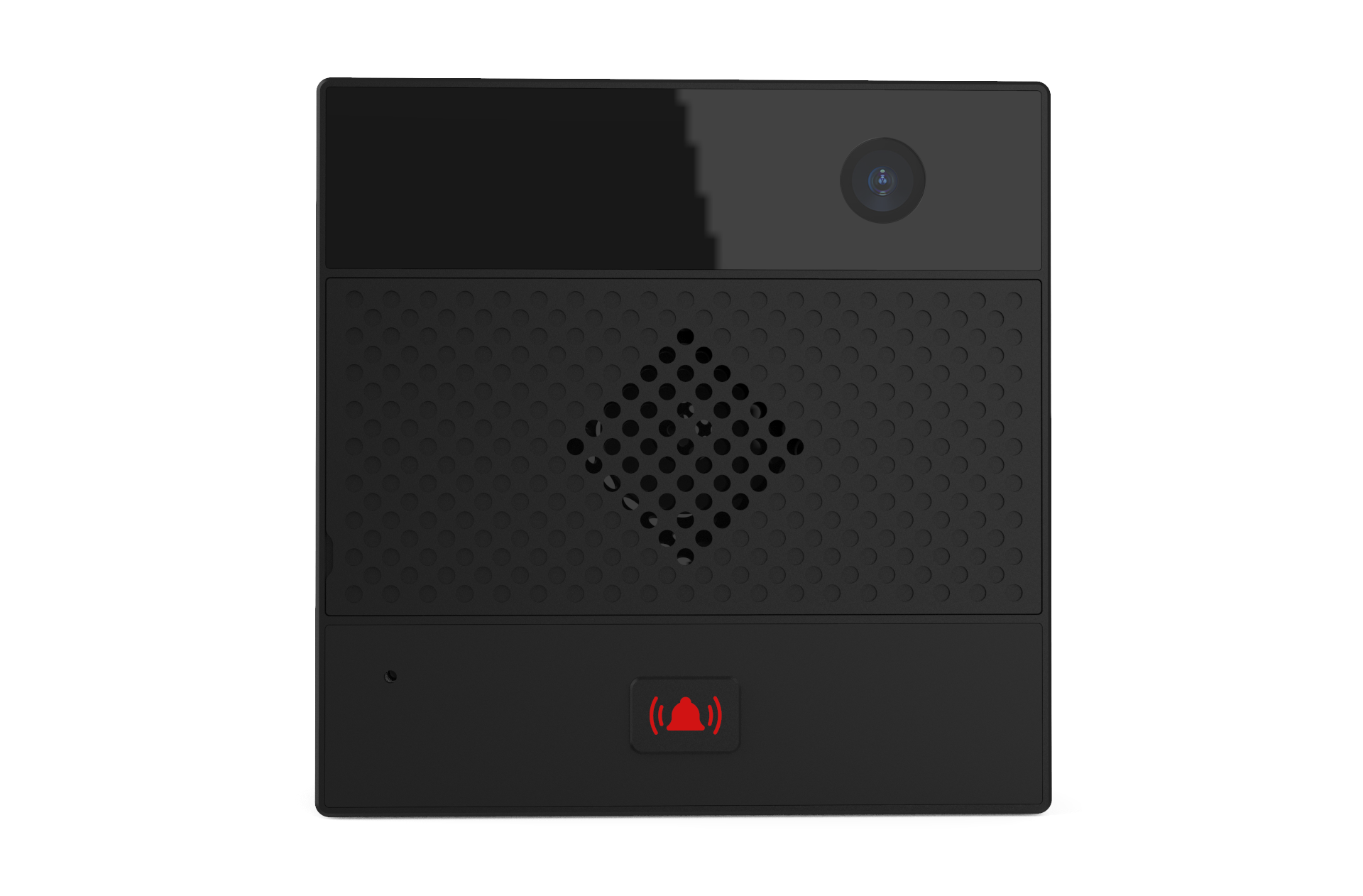

IP Security Call Button PoE Video Mini Intercom K86

IP Security Call Button PoE Video Mini Intercom K86

The K86C video intercom terminal, with its compact ABS housing, offers powerful features such as one-touch door release, two-way audio communic

View details

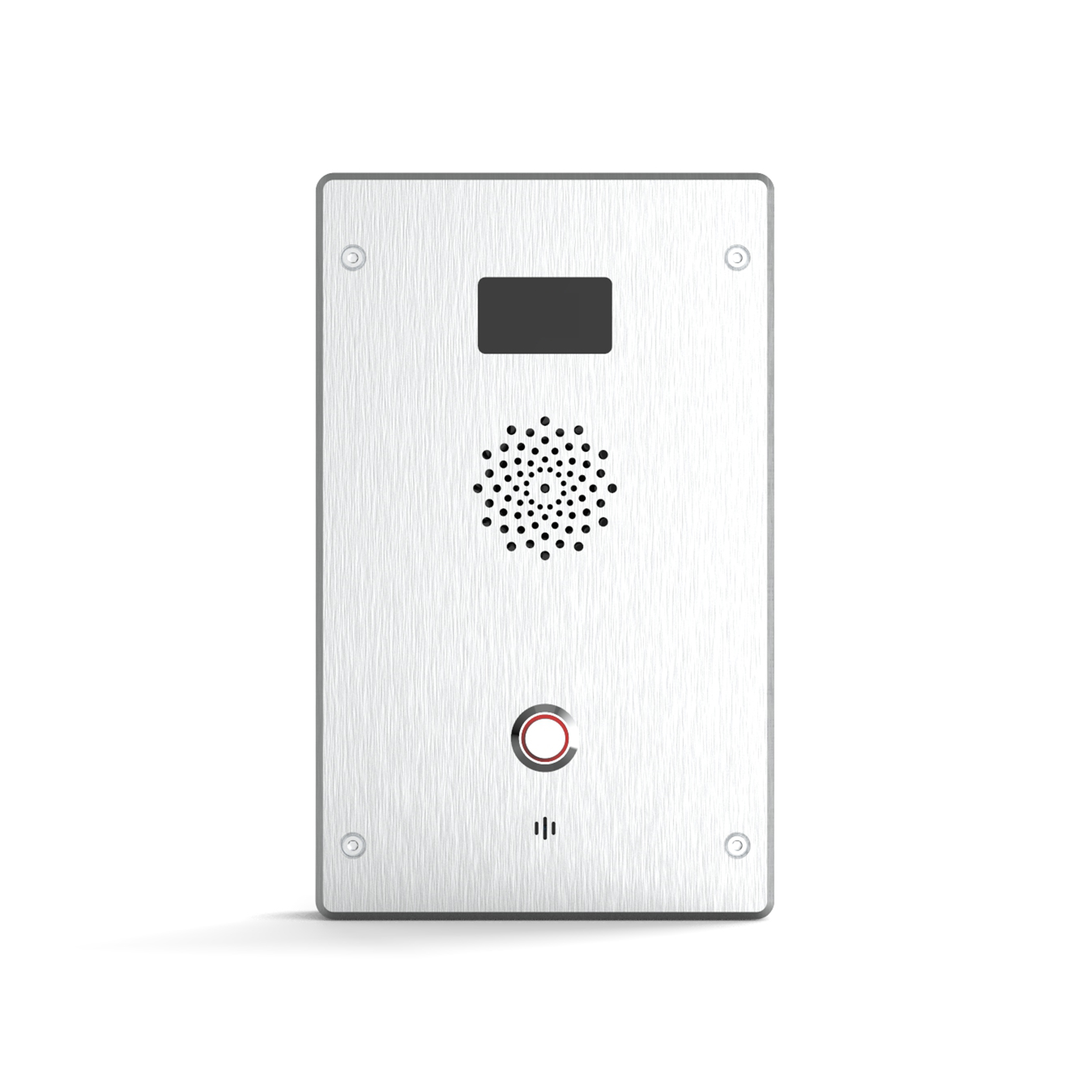

Communication System PoE Video Sip Phone K20 Two-Way Call Audio Intercom for Hotel Hospital Parking Lot
