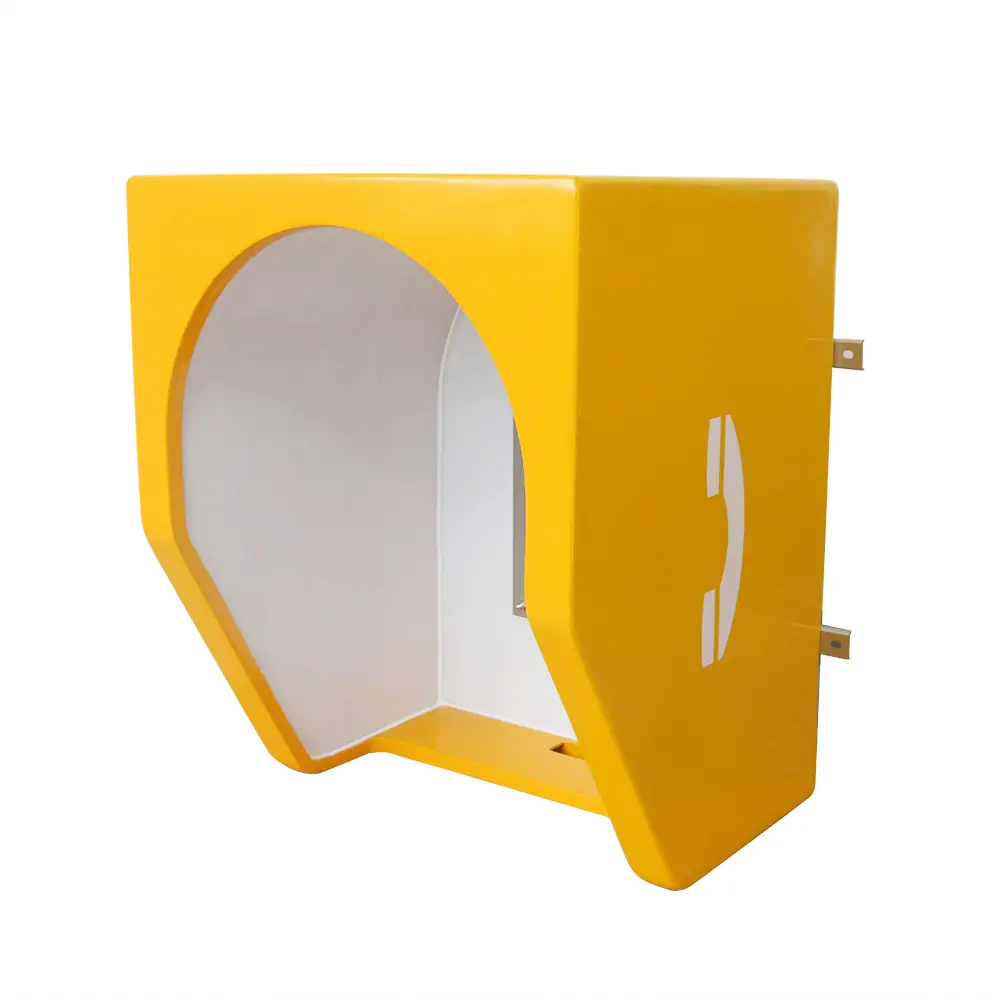

Acoustic Hood JR-TH-12

The JR-TH series Acoustic Hood, molded from glass fiber reinforced plastics (SMC), combines aesthetic appeal with exceptional durability to withstand noise, impact, freezing temperatures, corrosion, high heat, and flames. It is ideal for high-noise environments, including high-noise environments including ships, offshore platforms, power plants, substations, and petrochemical facilities with up to 25dB noise reduction.
Get Pricing/info Download

Main Features

  • Suitable for indoor/outdoor use, waterproof, dustproof, and UV-resistant
  • SMC construction for high strength and impact resistance
  • 3 mm white perforated polypropylene acoustic lining
  • Interior space supports phone installation (max load: 30kg)

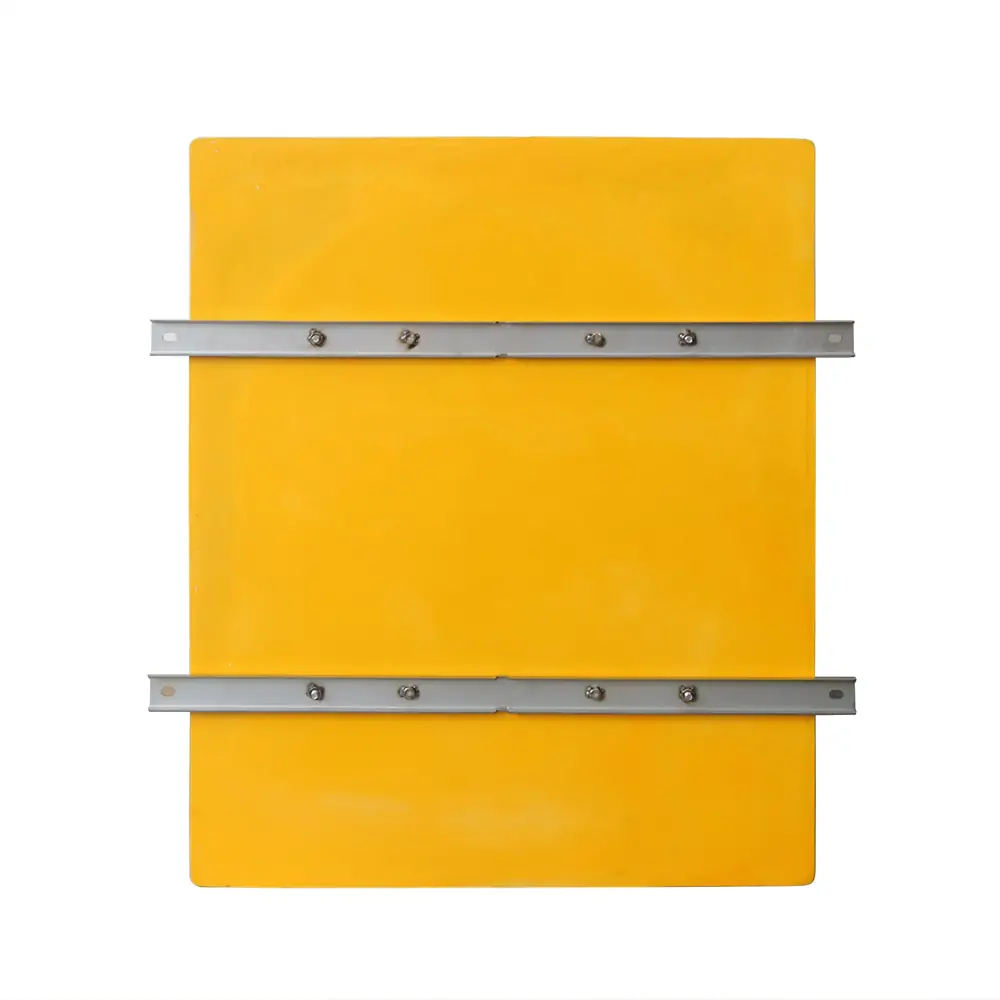

  • Wall-mounted via two SUS304 mounting brackets

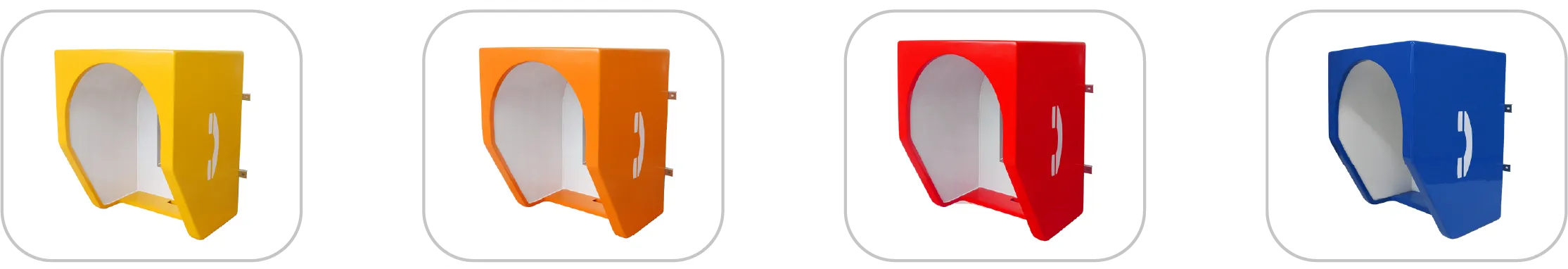

  • Available colors: yellow, orange, red, or blue (other colors/dimensions upon request)

Acoustic Hood JR-TH-12

Product Video

Technical Specifications

Shell Material SMC fiberglass enclosure with automotive-grade outdoor paint finish
Acoustic Layer 3 mm white perforated polypropylene lining (≈25dB noise reduction)
Back Panel Material SUS304
Mounting Brackets Material SUS304
Dimensions 900 x 700 x 620mm (H × W × D)
Net Weight 38kg
Packaging Size 1030 x 800 x 690mm (H × W × D)
Gross Weight 70kg, wooden case

Optional Accessories

No related content

Dimensions

JR-TH-12 Dimensions
