IP PoE Horn Speaker JRSP-SIP-02

  • SIP Speaker JRSP-SIP-01 is designed for outdoor environments.
  • It allows users to remotely warn off intruders before they commit a crime, to deliver instructions during an emergency or to make general voice messages. The SIP speaker also support to play a prerecord audio file manually or automatically in response to an alarm event.
Get Pricing/info Download

Main Features

  • Solid Integration: Merges an amplifier and speakers in a sturdy aluminum alloy casing, supported by a stainless steel bracket
  • High-Volume Audio: Equipped with speakers that reach >115dB with POE power, ensuring clear outdoor communication
  • Waterproof Microphone: Features a waterproof microphone with dynamic volume control, guaranteeing high-definition 2-Way Intercom
  • Weather Resistance: Boasting an IP65 rating, it endures harsh weather and functions in temperatures from -40 to 60℃
  • Flexible Power Options: Compatible with both POE and POE+ for diverse installation and deployment scenarios
  • Remote Management: Enables remote management and supports online upgrades for ongoing system enhancement

IP PoE Horn Speaker JRSP-SIP-02

Applications

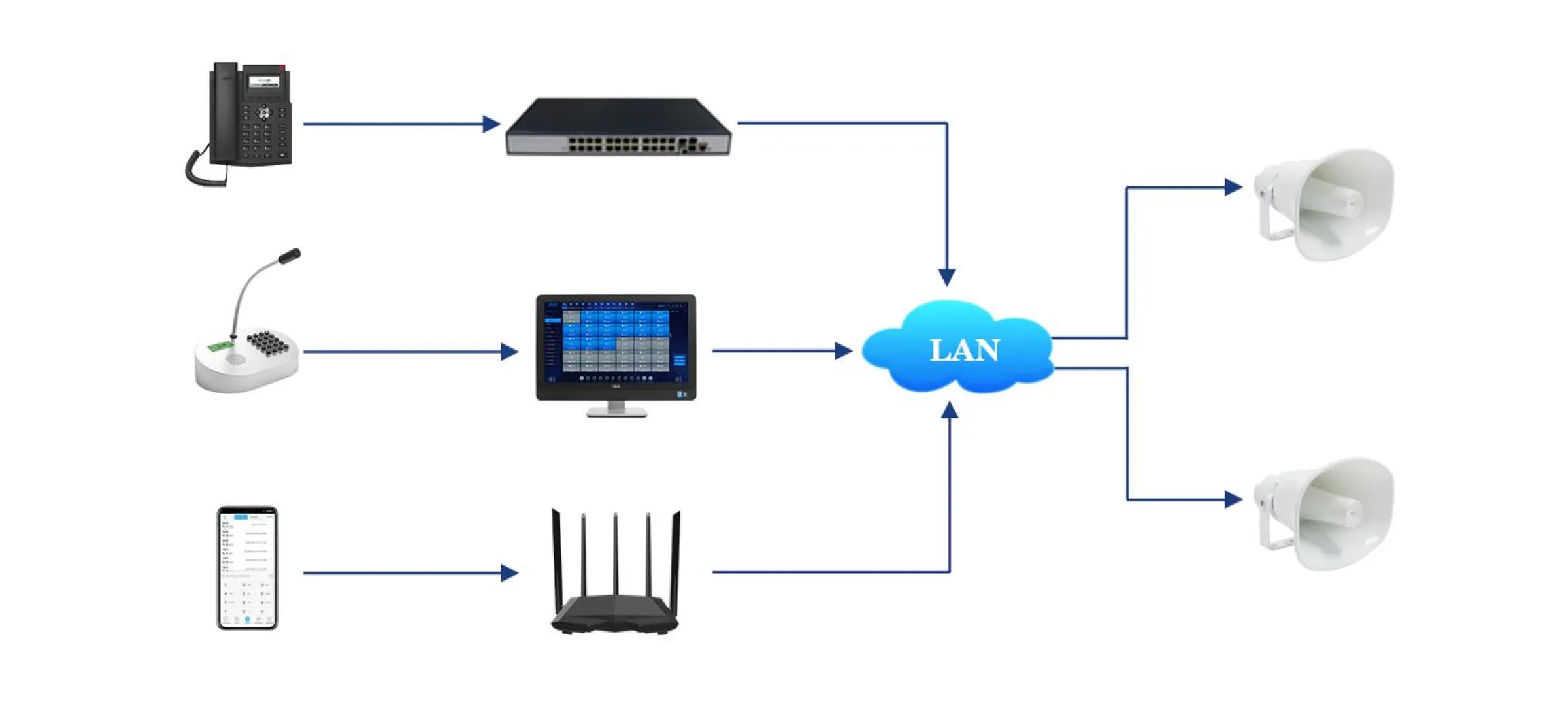

1.The IP PoE Horn Speaker JRSP-SIP-01 support SIP protocol which can be independently used as a sip endpoint to integrated with mainstream VOIP system for receiving sip call from SIP phone or SIP softphone Meanwhile, it also can receive broadcast from J&R management software, IP Paging Mic and SIP-APP.

IP PoE Horn Speaker JRSP-SIP-02 APPLICATIONS

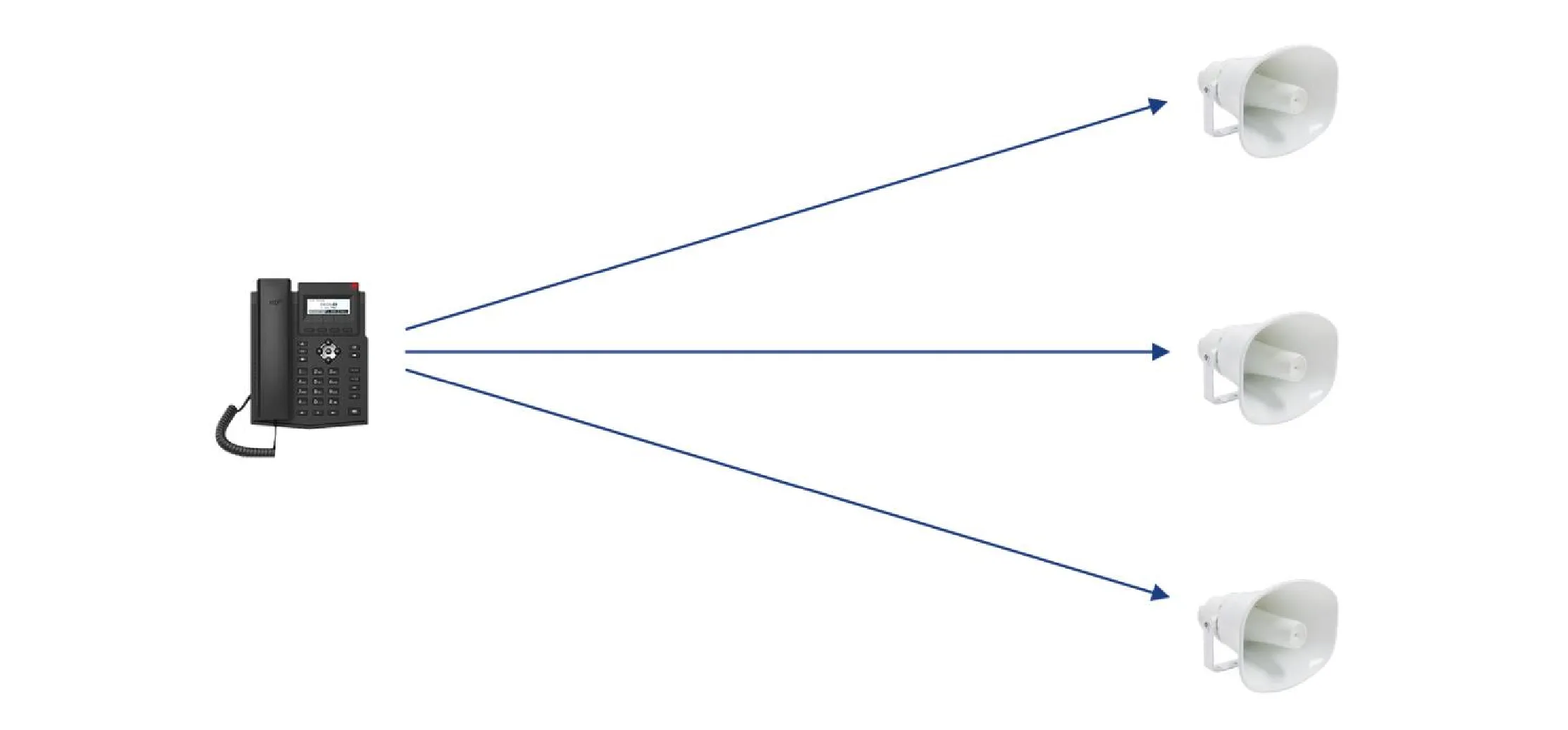

2.The IP PoE Horn Speaker JRSP-SIP-01 support paging from SIP phone by using multicast address , the multicast address and priority can be set on its webpage.

IP PoE Horn Speaker JRSP-SIP-02 APPLICATIONS

Product Video

Technical Specifications

Audio
Audio streaming 2-way
Audio encoding G.722, G.722.2, G.711μ/a, G.729A/B, G.723.1,OPUS
Additional Media Features Acoustic echo cancelation (AEC) - multiple path, wideband acoustic EC, Packet Loss Concealment, Silence Suppression,
Voice Activation Detection, Adaptive Jitter Buffer
Speaker
Max sound pressure level >115dB
Frequency response 280 Hz - 12.5 kHz
Coverage pattern 70° horizontal by 100° vertical (at 2 kHz)
Amplifier
Amplifier description Built-in 25w/30W Class D amplifier
Protocol Support
VoIP and Signaling SIP-RFC 3261, SDP-RFC 2327, SIP over TCP/UDP/TLS, DNS-SRV (Redundancy)
Digest authentication, PRACK, Early Media, SIP Subscribe notify, BLF (busy lamp field)
Data Protocols IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, RTCP-XR, 802.1x, Static IP / DHCP IP Assignment, IEEE802.1p / Q, QoS / ToS,
HTTP / HTTPS / DHCP, NTP, FTP / TFTP, CDP / LLDP VLAN Configuration, LDAP
Security 802.1x, HTTPS, SIP over TLS and SRTP, Configuration file encryption
Provisioning & Management Web Server for Configuration and Management,Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP Options
(66, 67, 160, 12, 60, 77)
General Specifications
Casing Impact-resistant engineering plastic, IP65-rated
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at
Connectors RJ45 10BASE-T/100BASE-TX PoE
Operating conditions -40°C to 60°C
Humidity 10-95 % RH (condensing)
Warranty One-year warranty
Packaging Specifications
Product dimensions 280 × 280 × 205 mm (L × W × H)
Weight 1.8 kg
Packaging material EPE foam lining + carton box

Optional Accessories

No related content

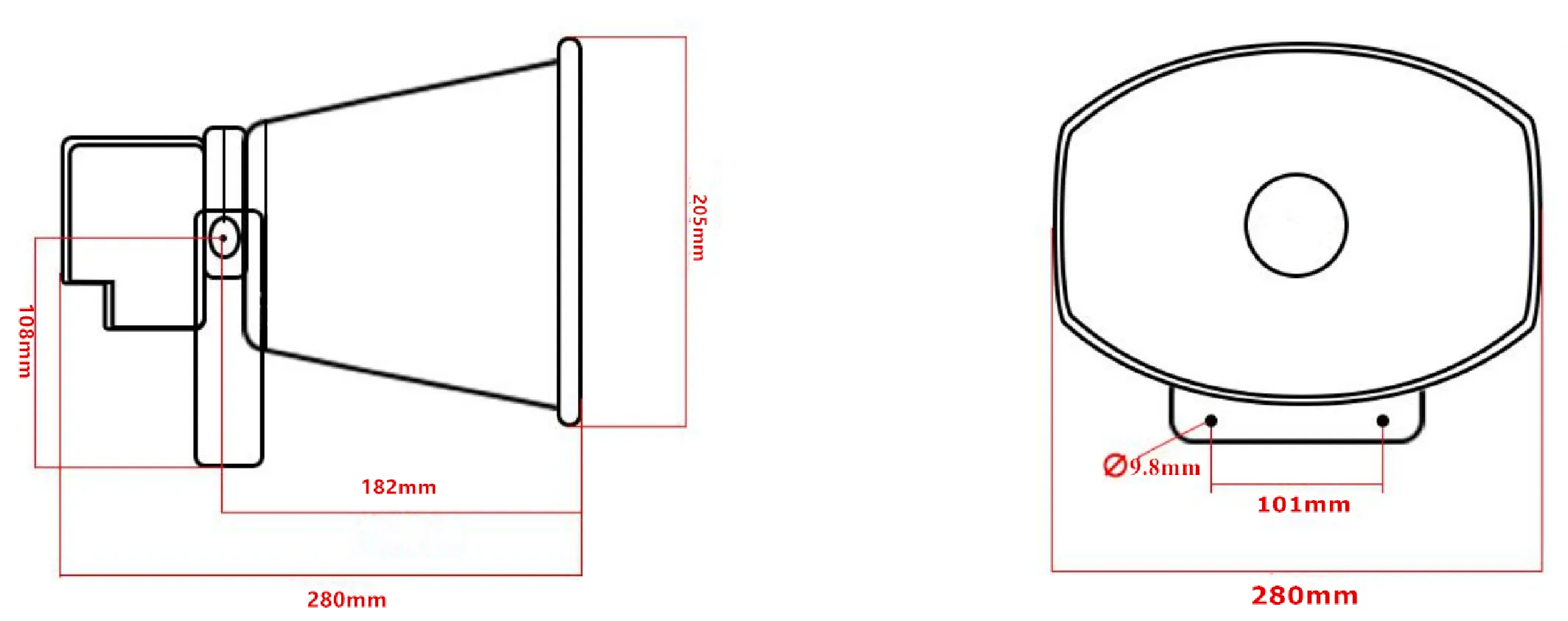

Dimensions

IP PoE Horn Speaker JRSP-SIP-02 Dimensions
