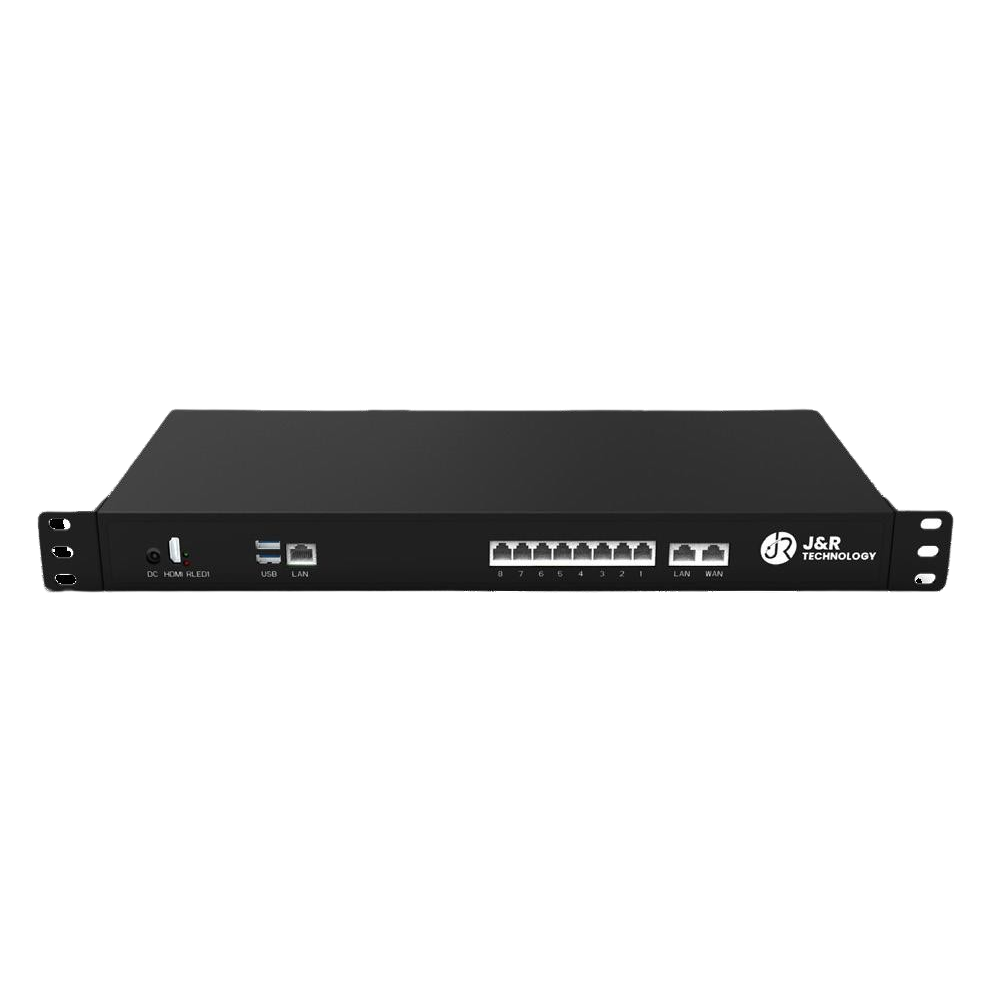

JRPBX-T200/300/500

Supports mainstream audio and video coding standards such as G.711, G.729, G.723, H.264, etc.

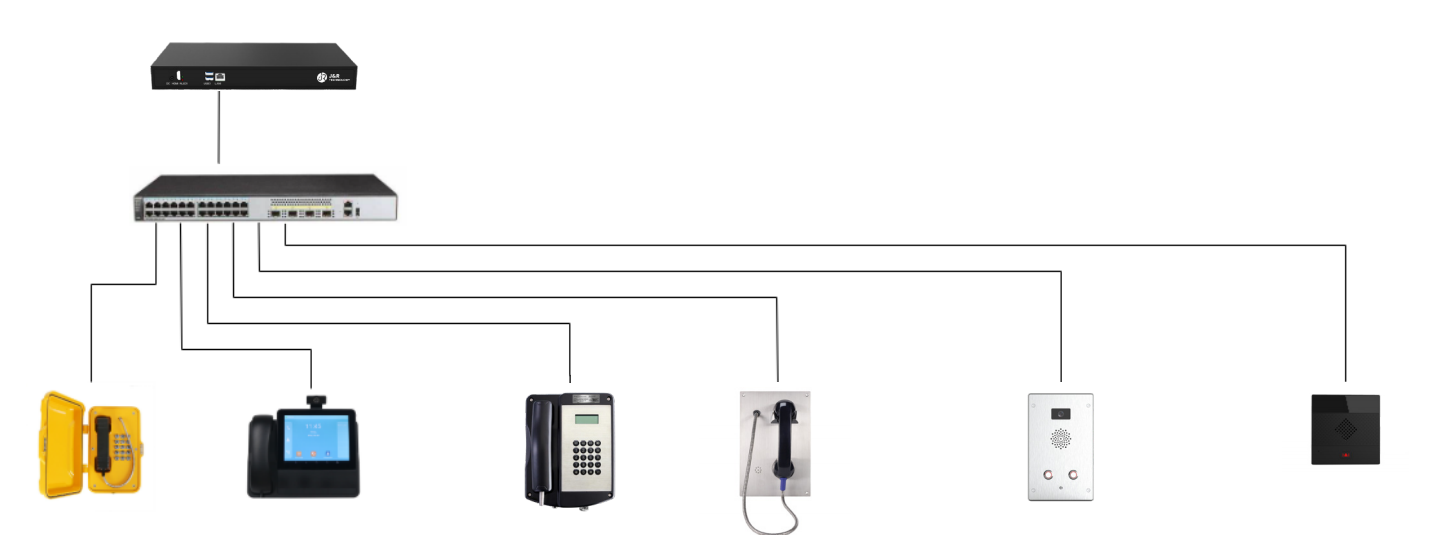

Openness: This dispatching system is based on the standard SIP protocol, supports third-party equipment access and interconnection with the customer's existing IP communication system.
High-definition sound quality: Supports standard broadband voice coding, combined with unique echo cancellation technology, compared with traditional PCMA coding, it can be called fidelity and high-definition sound quality.

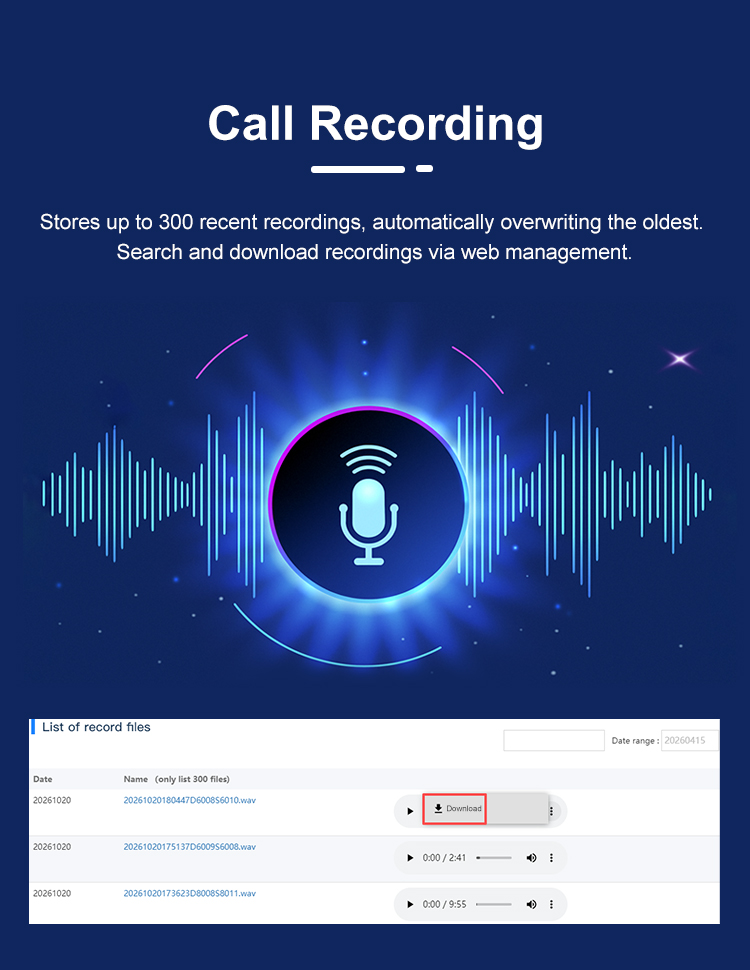

Call and conversation: support dial-up calling, incoming call answering, two-way intercom, hands-free calling, monitoring, intercom recording, multi-line switching, etc.

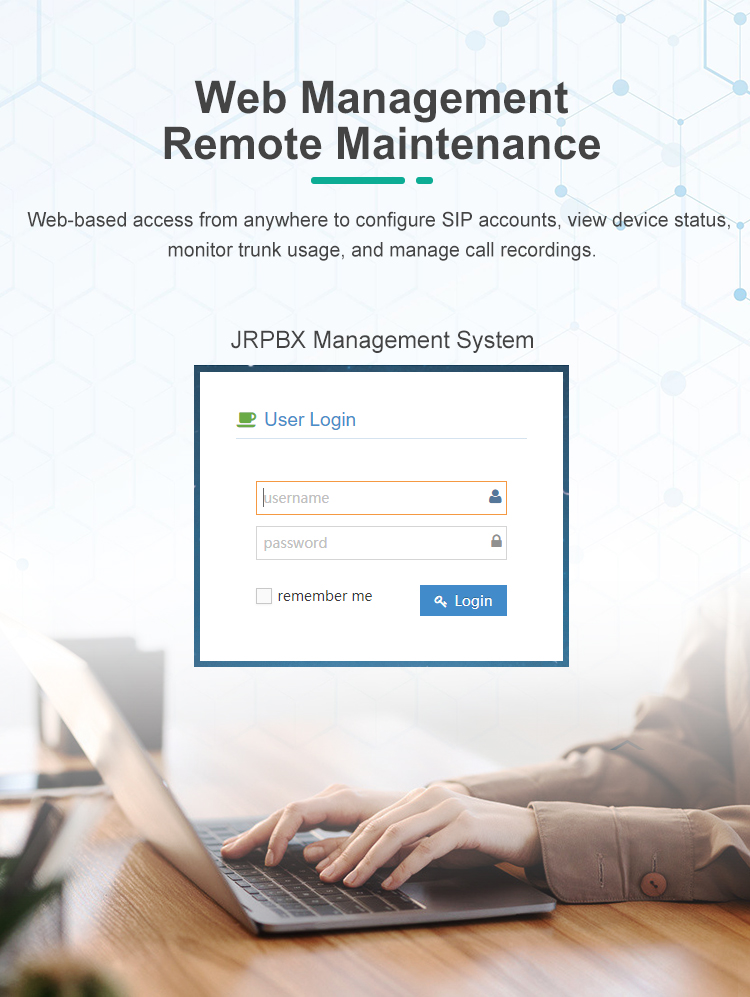

Management function: system management, group management, account management, authority management, hotline management.

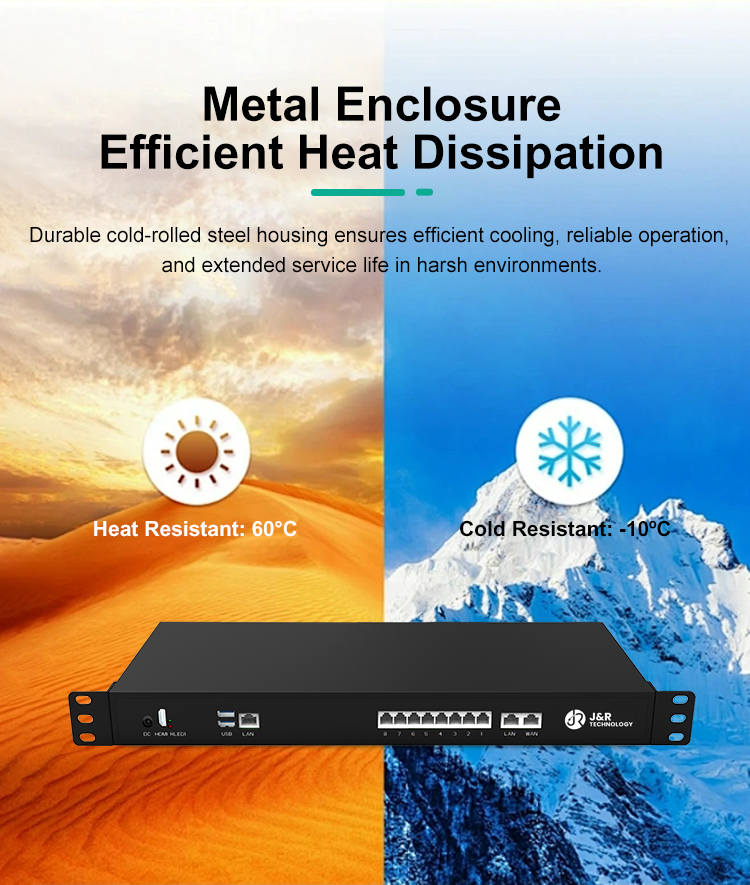

Working temperature: -10°C to +60°C.
Signaling protocol is SIP, following RFC3261 Standard.
Routing method: registration database, dial plan.

Get Pricing/info Download

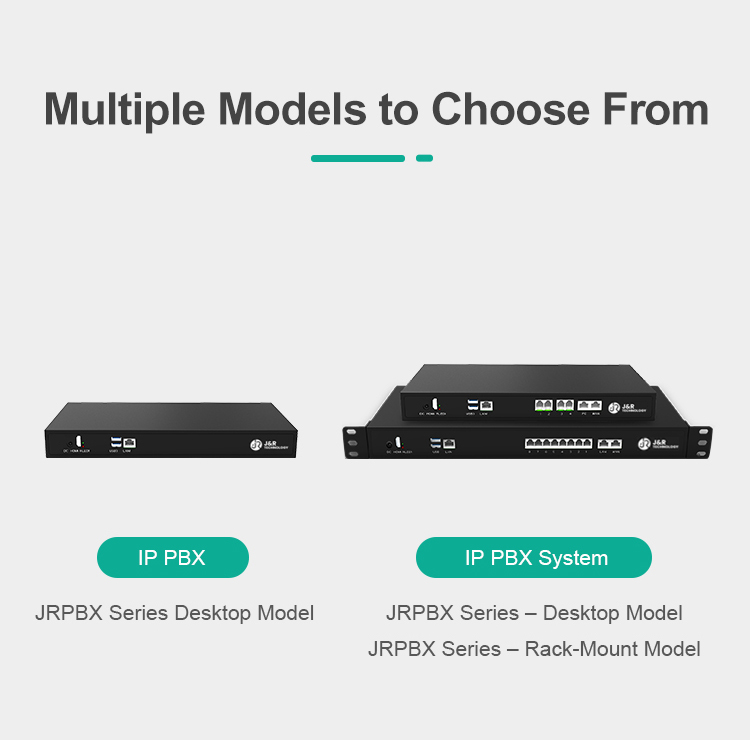

JRPBX Series Technical specifications
Model name	JRPBX-T200	JRPBX-T300	JRPBX-T500
Power supply	100~220V AC	100~220V AC	100~220V AC
Power consumption	≤35W	≤35W	≤35W
Storage	1T	1T	1T
Operating temperature	-10℃ to +60 ℃	-10℃ to +60 ℃	-10℃ to +60 ℃
Dimensions	428×187×46mm	428×187×46mm	428×187×46mm

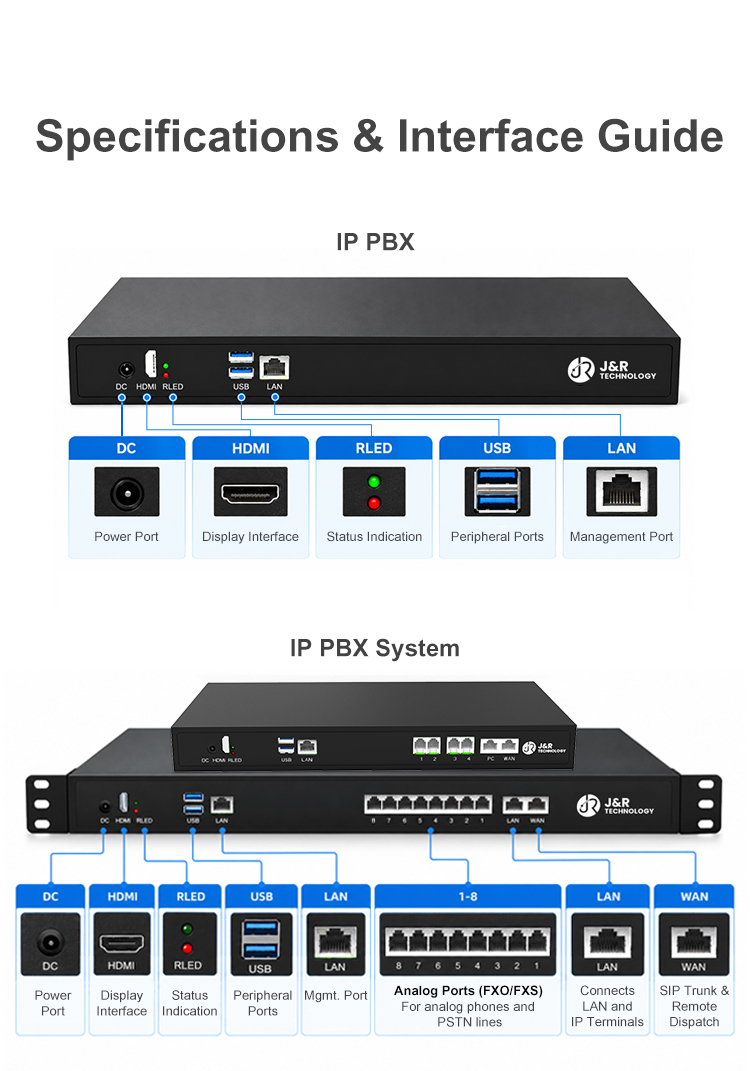

Network port	10/100/1000M	10/100/1000M	10/100/1000M
Number of registered terminals	200	300	500
Number of concurrent calls	100	150	250
Concurrent recording channels	8	8	8
