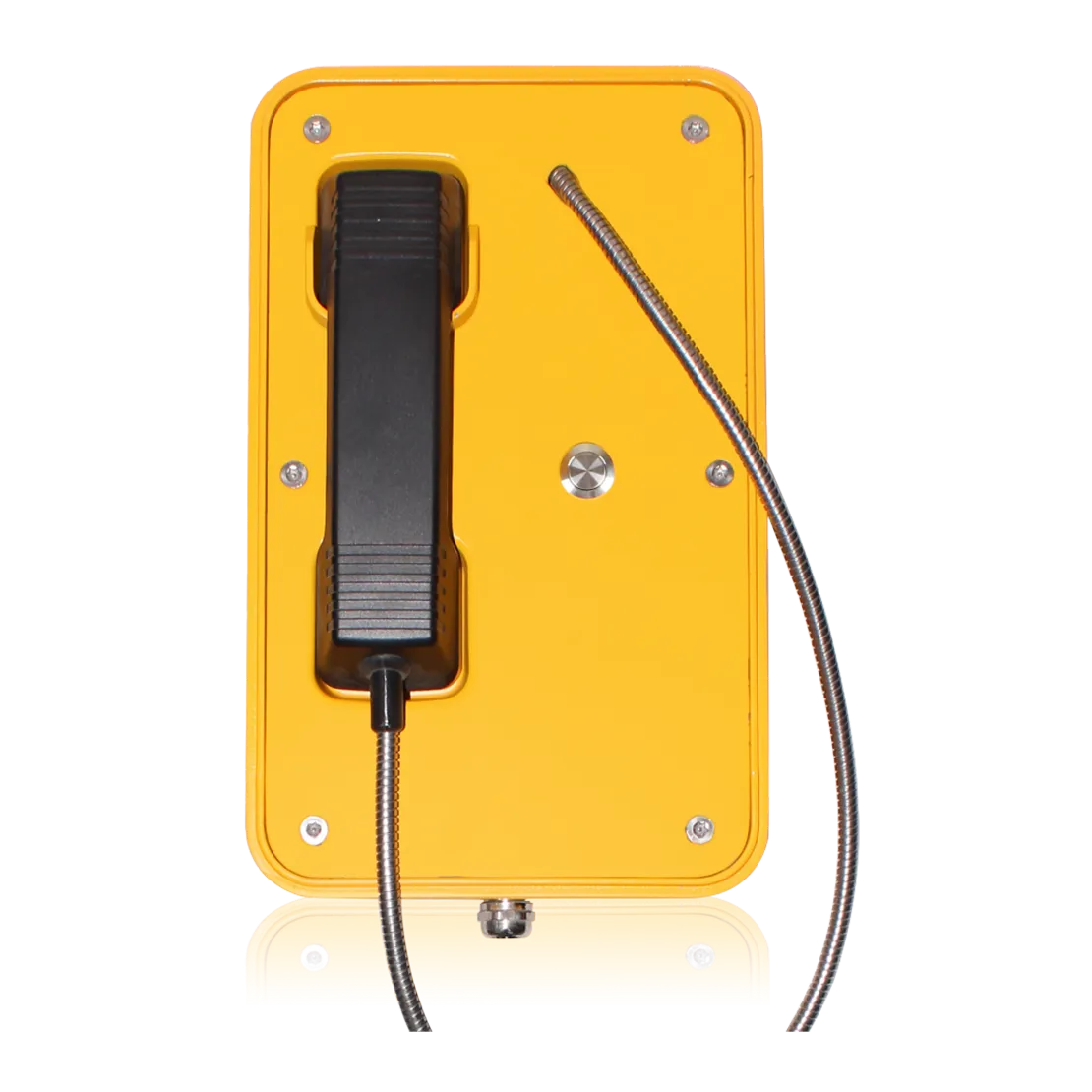

It was designed for public and industrial areas requiring a virtually indestructible telephone. The housing is made of die-cast aluminum alloy, with a weatherproof enclosure and an exterior polyurethane finish. It is designed to withstand high levels of humidity, dust, vibration, shock, extreme temperatures, (salt)water, abuse or attempted vandalism.
Typical applications include Outdoor Environments, Public Highways, Underground Tunnels / Mining, Offshore Wind Farms, Production Floors, Chemical Processing Sites, Power Stations or inside large Lifting Machinery such as Quayside Container Cranes, Rubber-Tyred Gantry Cranes (RTGs) and bulk-material Ship Loaders.
4G Specifications | |
Power supply | 12V DC |
Adapter input | 7.4 V-12V DC |
Power consumption | Idle 0.3W / Working 1.5W |
Communication mode | 4G |
Working frequency | Depends on modules |
Ringing tone | 90 dB (A) @ 1 meter |
Configuration method | Remote configuration via SMS, allows management from a central location |
Configuration | Remote monitoring / Auto-dial numbers |
Time out | Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably |
Diagnostic function | Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message |
Antenna | Quad-band SMA male, externally mounted with 2 m cable |
Environment temperature | Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C |
M.T.B.F. | Exceeds 50,000 hours under normal operating conditions |
4G Module EC25 | |||||
Module | EC25-E | EC25-EU / EUX | EC25-J | EC25-V | |
Region | EMEA/Korea/Thailand/India | EMEA/Thailand | Japanese | America Verizon | |
Frequency | |||||
LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B8/B18/B19/B26 | B4/B13 | |
LTE-TDD | B38/B40/B41 | B38/B40/B41 | B41 | / | |
WCDMA | B38/B40/B41 | B1/B8 | B1/B6/B8/B19 | / | |
GSM/EDGE | B3/B8 | B3/B8 | / | / | |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
|
Module | EC25-A | EC25-AF / AFX / AFXD (Data-only) | EC25-AUX | EC25-MX | |
Region | North America | North America | Latin America/Australia/New Zealand | Mexico | |
Frequency | |||||
LTE-FDD | B2/B4/B12 | B2/B4/B5/B12/B13/B14/B66/B71 | B1/ B2/B3/B4/B5/B7/B8/B28 | B2/B4/B5/B7/B28/B66 | |
LTE-TDD | / | / | B40 | / | |
WCDMA | B2/B4/B5 | B2/B4/B5 | B1/B2/B4/B5/B8 | B2/B4/B5 | |
GSM/EDGE | / | / | B2/B3/B5/B8 | / | |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
/ |

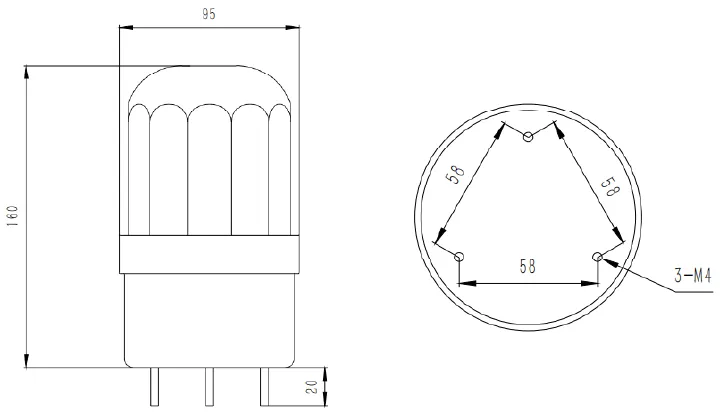

JR-LP-02 LED Beacon Light ![]() |

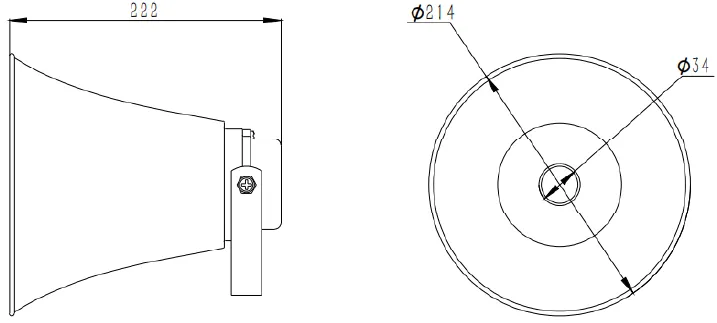

JR-HSA-10/20/25/30/35 Broadcast Horn ![]() |
||
Protection Leve | IP65 | Protection Leve | IP55 |
Standard Voltage | 12V / 24V / 220V | Freq.Range | 400-8KHZ(-20dB) |
Other Voltage | Customizable to 380V | SPL( 1W/M ) | 110±3B |
Available Colors | Red / Yellow / Blue / Green | Input Power | 35WMAX |
Lighting Mode | LED Lamp Beads | Rated SPL | 120±3dB |
Installation Method | Bolt Mounting | Mounting | “U” Bracket with Screw |
Sound Volume | 100-105 dB | M & Finish | Aluminum/Gray Powder Painting |
Power Consumption | 3W | Freq.Range | 8 Ohm |
Dimension | 160*95mm | Dimension | 222*214mm |
Port
Ship
iHghway / Tunnel
Railway
Generating station
Mining industry
Industrial park
Heavy industry
Package | |

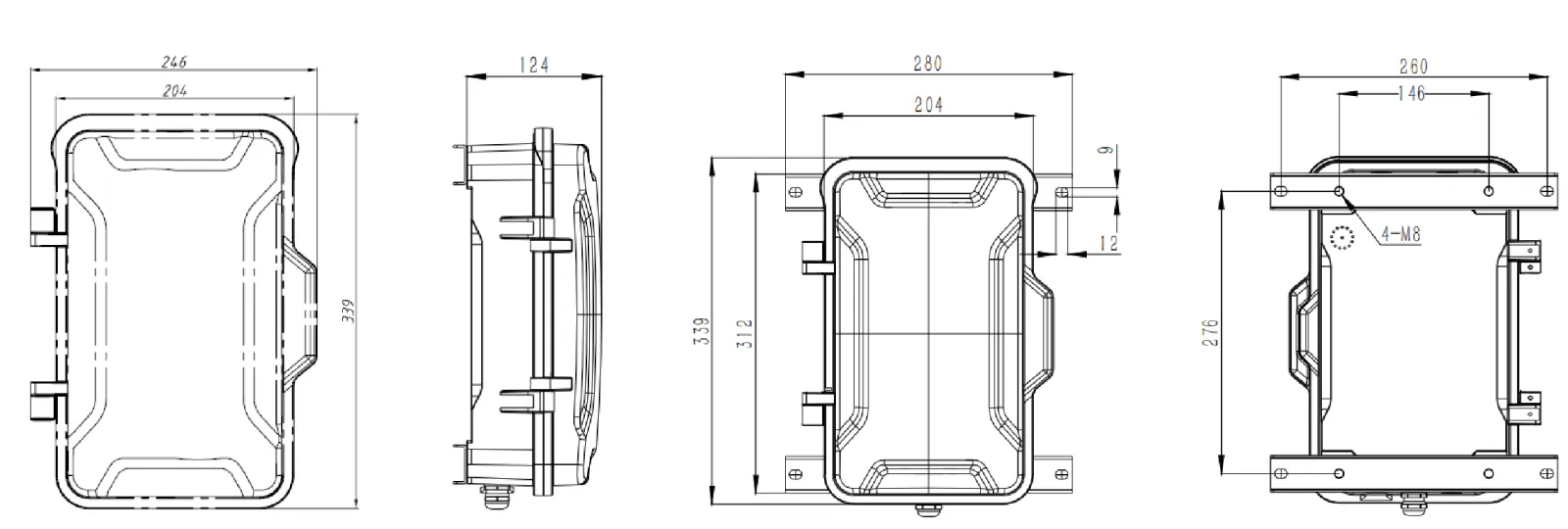

Unit size | 246*339*124 (mm) |
Shipping dimensions | 200*300*440 (mm) |
Packaging materials | Foam padding, carton |
Weight | Gross weight: 7 kg / Net weight: 6 kg |
