4G Wireless Communication With Remote Configuration
This Emergency Phone Tower offers greater deployment flexibility with options for wireless connectivity, solar power, surveillance, and day/night charging.
The towers withstand extreme temperatures, harsh weather conditions, vandalism, and vibration, while offering enhanced electromag- netic and lightning protection.
These towers are commonly deployed at university and college campuses, parking facilities, shopping malls, medical centers, industrial campuses, transit facilities, and remote locations where local power is unavailable.
4G Specifications | |
Power supply | 12V DC |
Adapter input | 7.4 V-12V DC |
Power consumption | Idle 0.3W / Working 1.5W |
Communication mode | 4G |
Working frequency | Depends on modules |
Ringing tone | 90 dB (A) @ 1 meter |
Configuration method | Remote configuration via SMS, allows management from a central location |
Configuration | Remote monitoring / Auto-dial numbers |
Time out | Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably |
Diagnostic function | Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message |
Antenna | Quad-band SMA male, externally mounted with 2 m cable |
Environment temperature | Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C |
M.T.B.F. | Exceeds 50,000 hours under normal operating conditions |
Lighting | |
LED Blue Light, 209 lumens peak, 78 flashes per minute, 70% of initial lumens after 50,000 hours of operation. | |
Coating | |
High-gloss, multi-layer, corrosion-inhibitive, system with resistance to graffiti protection. | |
Mounting | |
Mounts into concrete foundation using included hardware (shipped in advance). Mounting options available for pre-poured parking decks. |
4G Module EC25 | |||||
Module | EC25-E | EC25-EU / EUX | EC25-J | EC25-V | |
Region | EMEA/Korea/Thailand/India | EMEA/Thailand | Japanese | America Verizon | |
Frequency | |||||
LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B8/B18/B19/B26 | B4/B13 | |
LTE-TDD | B38/B40/B41 | B38/B40/B41 | B41 | / | |
WCDMA | B38/B40/B41 | B1/B8 | B1/B6/B8/B19 | / | |
GSM/EDGE | B3/B8 | B3/B8 | / | / | |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
|
Module | EC25-A | EC25-AF / AFX / AFXD (Data-only) | EC25-AUX | EC25-MX | |
Region | North America | North America | Latin America/Australia/New Zealand | Mexico | |
Frequency | |||||
LTE-FDD | B2/B4/B12 | B2/B4/B5/B12/B13/B14/B66/B71 | B1/ B2/B3/B4/B5/B7/B8/B28 | B2/B4/B5/B7/B28/B66 | |
LTE-TDD | / | / | B40 | / | |
WCDMA | B2/B4/B5 | B2/B4/B5 | B1/B2/B4/B5/B8 | B2/B4/B5 | |
GSM/EDGE | / | / | B2/B3/B5/B8 | / | |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
/ |
Metro
Airport
Platform
Business center
Highway / Tunnel
Railway
Hospital
School
Package | |

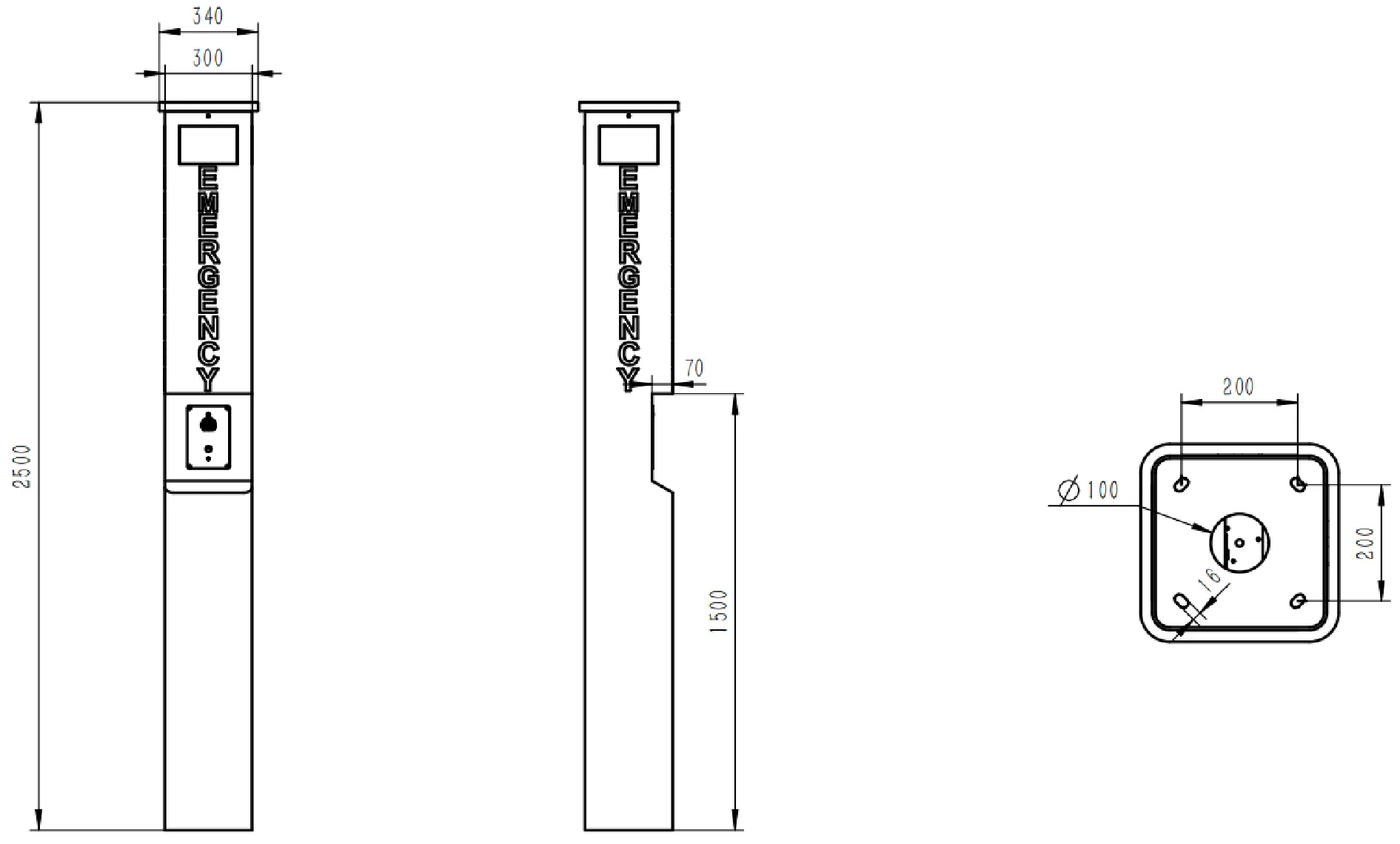

Unit size | 2500*340*300 (mm) |
Shipping dimensions | 2570*420*500 (mm) |
Packaging materials | Foam padding, wooden case |
Weight | Gross weight: 104 kg / Net weight: 67 kg |
