Housed in stainless steel with a wire-drawing finish and manufactured to high standards, these telephones offer enhanced resistance to vandalism and ensure reliable communication at all times.
Additionally, this series of phones has been tested in salt spray and is highly durable in humid and corrosive environments. Extremely easy to install, the cable entrance is located at the back of the phone to prevent artificial damage.
Ideal for parking lots, lifts/elevators, hotels, doorways, railway/metro platforms, hospitals, police stations, ATMs, stadiums, and outdoor building etc.
4G Specifications | |
Power supply | 12V DC |
Adapter input | 7.4 V-12V DC |
Power consumption | Idle 0.3W / Working 1.5W |
Communication mode | 4G |
Working frequency | Depends on modules |
Ringing tone | 90 dB (A) @ 1 meter |
Configuration method | Remote configuration via SMS, allows management from a central location |
Configuration | Remote monitoring / Auto-dial numbers |
Time out | Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably |
Diagnostic function | Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message |
Antenna | Quad-band SMA male, externally mounted with 2 m cable |
Environment temperature | Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C |
M.T.B.F. | Exceeds 50,000 hours under normal operating conditions |
4G Module EC25 | |||||
Module | EC25-E | EC25-EU / EUX | EC25-J | EC25-V | |
Region | EMEA/Korea/Thailand/India | EMEA/Thailand | Japanese | America Verizon | |
Frequency | |||||
LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B8/B18/B19/B26 | B4/B13 | |
LTE-TDD | B38/B40/B41 | B38/B40/B41 | B41 | / | |
WCDMA | B38/B40/B41 | B1/B8 | B1/B6/B8/B19 | / | |
GSM/EDGE | B3/B8 | B3/B8 | / | / | |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
|
Module | EC25-A | EC25-AF / AFX / AFXD (Data-only) | EC25-AUX | EC25-MX | |
Region | North America | North America | Latin America/Australia/New Zealand | Mexico | |
Frequency | |||||
LTE-FDD | B2/B4/B12 | B2/B4/B5/B12/B13/B14/B66/B71 | B1/ B2/B3/B4/B5/B7/B8/B28 | B2/B4/B5/B7/B28/B66 | |
LTE-TDD | / | / | B40 | / | |
WCDMA | B2/B4/B5 | B2/B4/B5 | B1/B2/B4/B5/B8 | B2/B4/B5 | |
GSM/EDGE | / | / | B2/B3/B5/B8 | / | |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option) |
/ |
Metro
Airport
Platform
Business center
Clean room
Hospital
Bank
School
Package | |

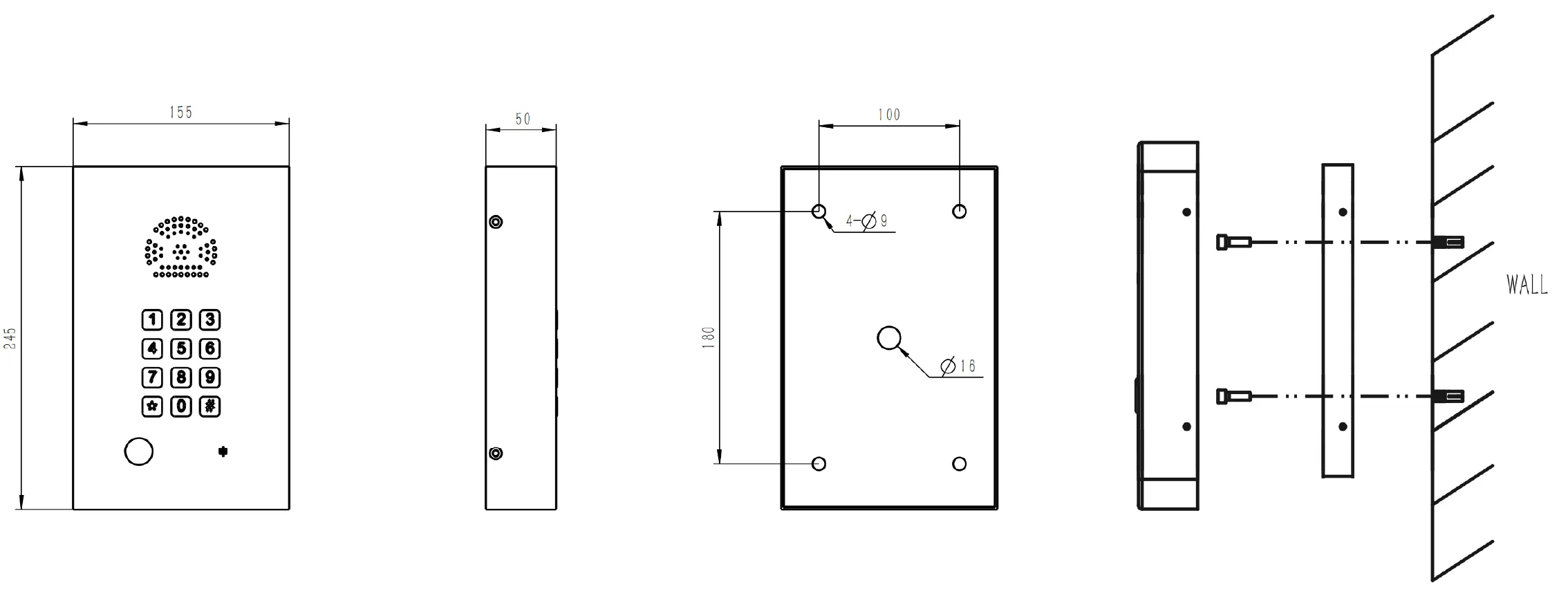

Unit size | 245*155*50 (mm) |
Shipping dimensions | 340*235*165 (mm) |
Packaging materials | Foam padding, carton |
Weight | Gross weight: 3 kg / Net weight: 2.5 kg |
