Housed in Stainless steel wire-drawing technology and manufactured to a high standard, standard on wall mounting and easy installa- tion, we will also provide the related installation tool and security screws. There is a humanized design of the cable entry holes behind the phone, the RJ45 cable and power line can be hidden in the back shell. These SIP Bi-direction help point offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
The Help Point is specifically designed for commercial locations such as banks, shopping malls, subways, stations, and parks, where emergency call equipment is essential.
Waterproof Microphone: Features a waterproof microphone with dynamic volume control, guaranteeing high-definition 2-Way Intercom.
Weather Resistance: Boasting an IP55-65 rating, it endures harsh weather and functions in temperatures from -30 to 65℃
Flexible Power Options: Compatible with both POE and POE+ for diverse installation and deployment scenarios.
Remote Management: Enables remote management and supports online upgrades for ongoing system enhancement.
SIP Protocol | |
GSM/PCMU/PCMA/OPUS | G.7211-16000/G.7211-32000/G.729/G.723 |
Speex-16000/8000/32000 | ISAC-16000/32000 |
AMR/ILBC | SILK-8000/12000/16000/24000 |
CODEC2 | H.263-1998/VP8/H.264 |
Specification | |||
Standard SIP 2.0 (RFC3261) protocol | DC 12V Powered | ||
Support DHCP get IP on WAN port | Connectors, Cat5e or better | ||
Support configuration by web interface | The video support H.264, H.263 encoding | ||
Support Echo cancellation | Flexible hardware design, rich peripheral interface | ||
Heat dissipation | 64 BTU/Hr | Power Consumption | 16W |
LAN Port | 10/100Base- T RJ-45 for PC, Auto MDIX | WAN Port | 10/100Base- T RJ-45 for LAN, Auto MDIX |
Operating system | Android 5.1 | CPU | Quad-core ARM cortex A17 CPU@1.8GHz |
RAM: LPDDR3 1G | ROM: EMMC 8G | USB interface | Micro usb OTG2.0 |
HDMI | V2.0 and support 4K HD output | RJ45 interface | IEE802.3af |
Speaker | 8Ω 10W | Operating: -30°C to +65°C | Storing: -40°C to +75°C |
Induction Loop | |||
Effective distance | 60~120 CM | Power | 8W |
Metro
Airport
Bus Station
Parking
Park
Business center
Bank
School
Package | |

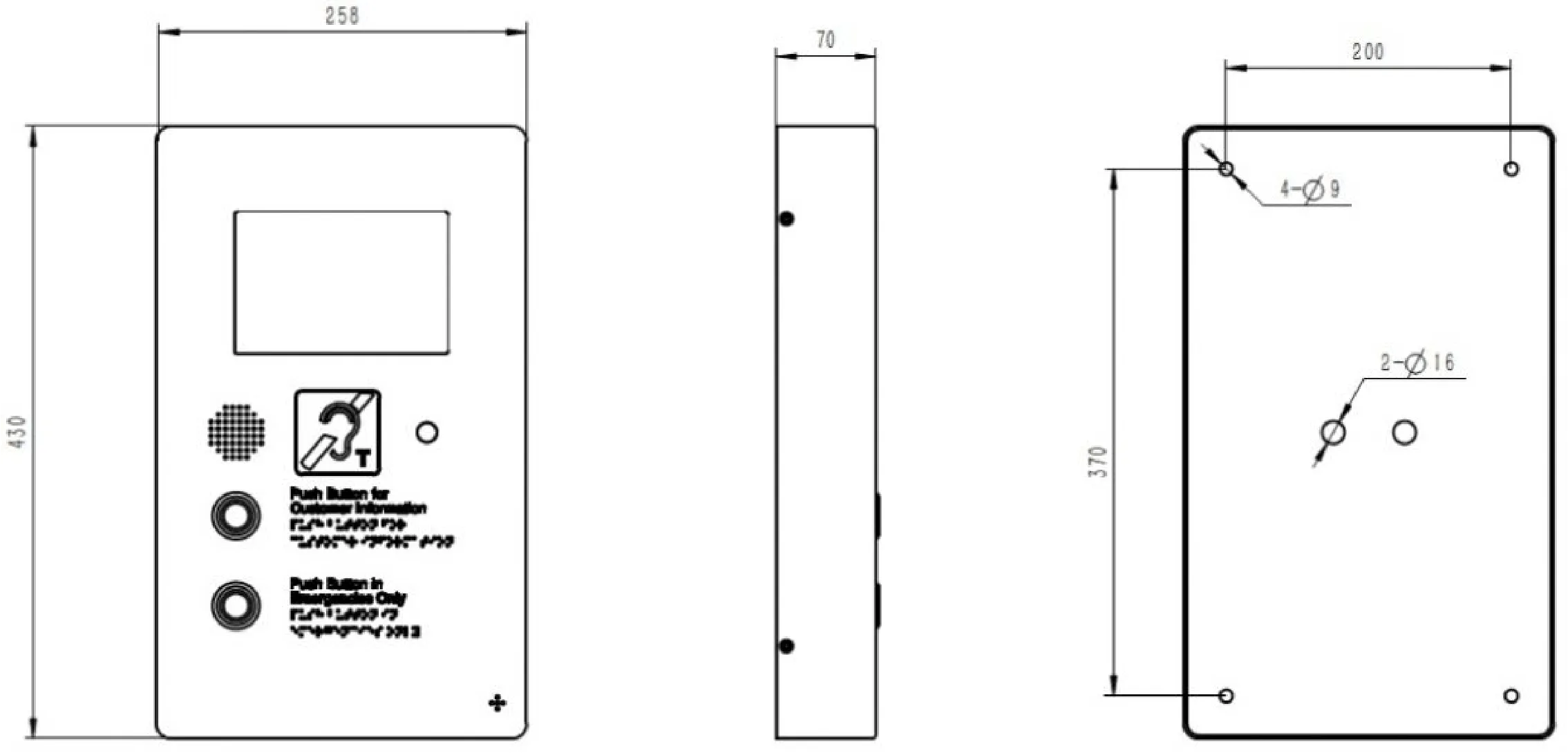

Unit size | 430 *258 *70(mm) |
Packaging materials | Pearl cotton |
weight | Gross weight: 8KG / Net weight: 7.5 KG |
