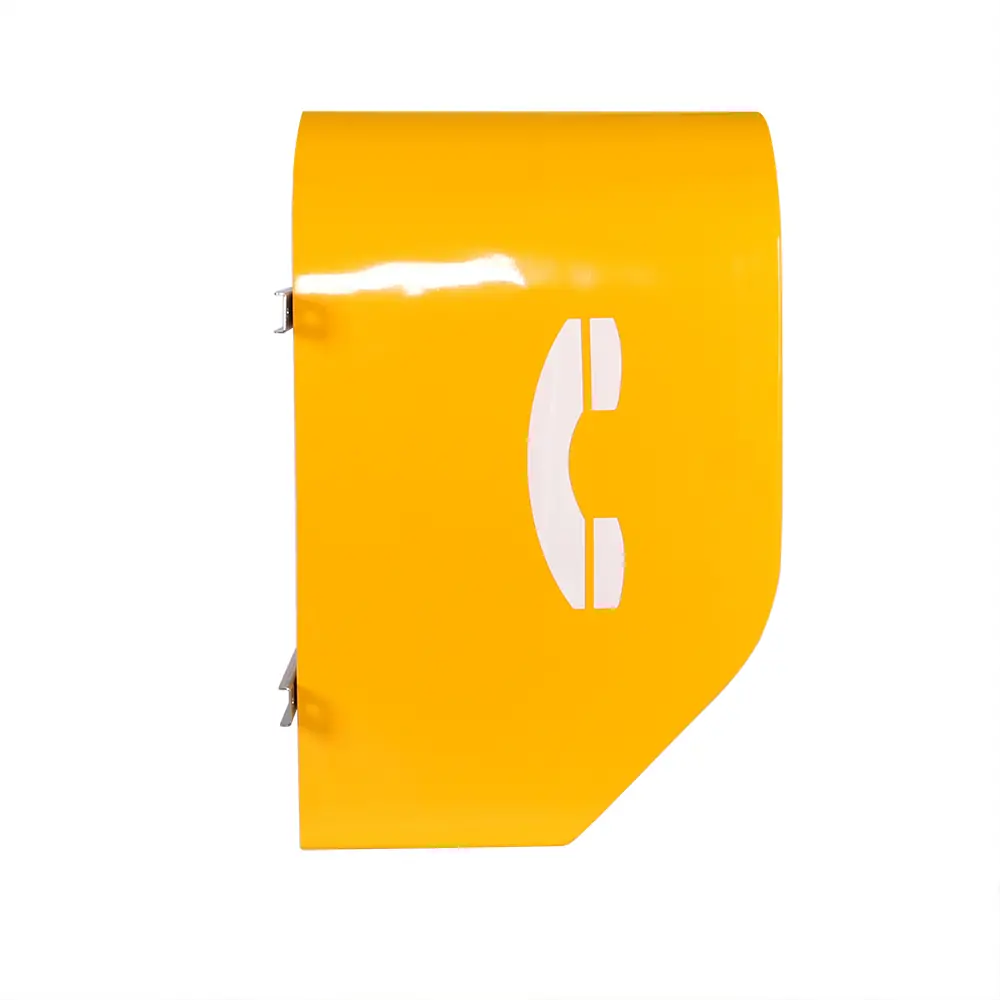

Acoustic Hood JR-TH-01

The JR-TH series Acoustic Hood, molded from glass fiber reinforced plastics (SMC), combines aesthetic appeal with exceptional durability to withstand noise, impact, freezing temperatures, corrosion, high heat, and flames. It is ideal for high-noise environments, including high-noise environments including ships, offshore platforms, power plants, substations, and petrochemical facilities with up to 23dB noise reduction.
Get Pricing/info Download

Main Features

  • Suitable for indoor/outdoor use, waterproof, dustproof, and UV-resistant
  • SMC construction for high strength and impact resistance

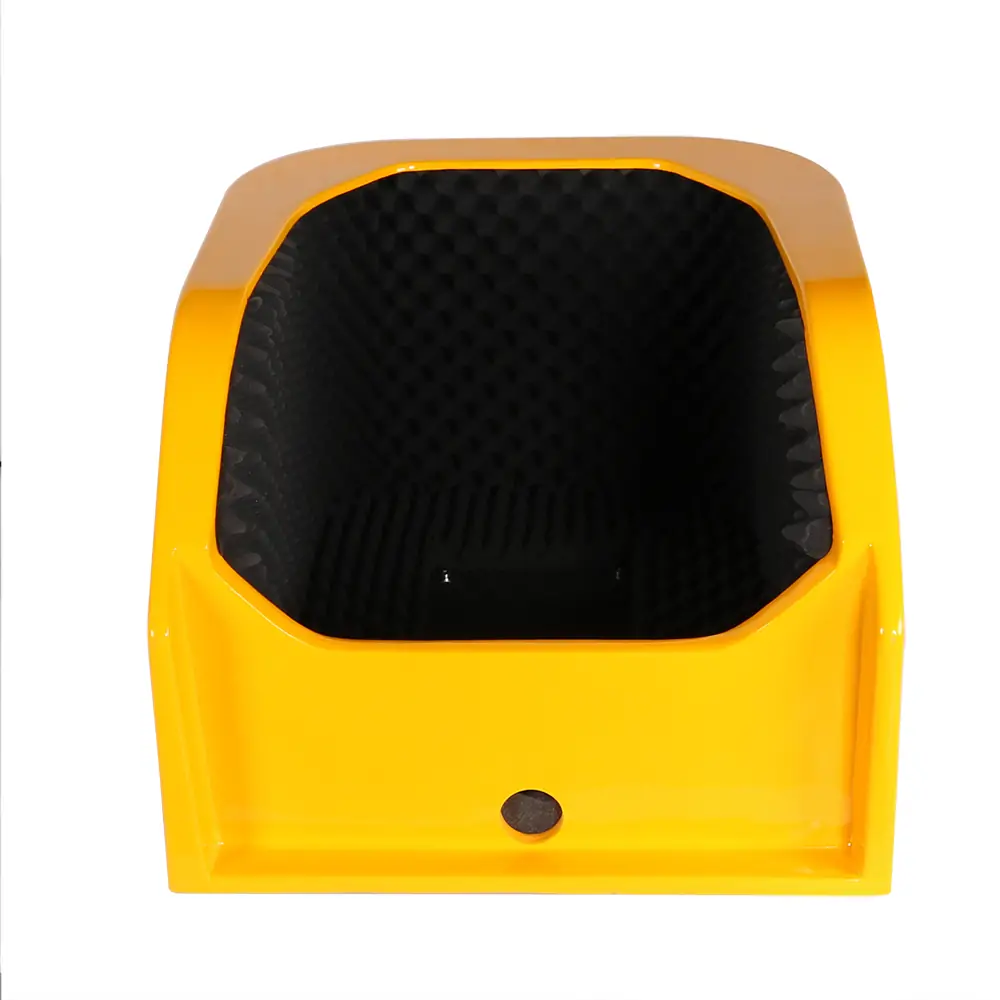

  • Constructed with high-density, eco-friendly polyurethane acoustic material (80mm thick) for effective sound absorption

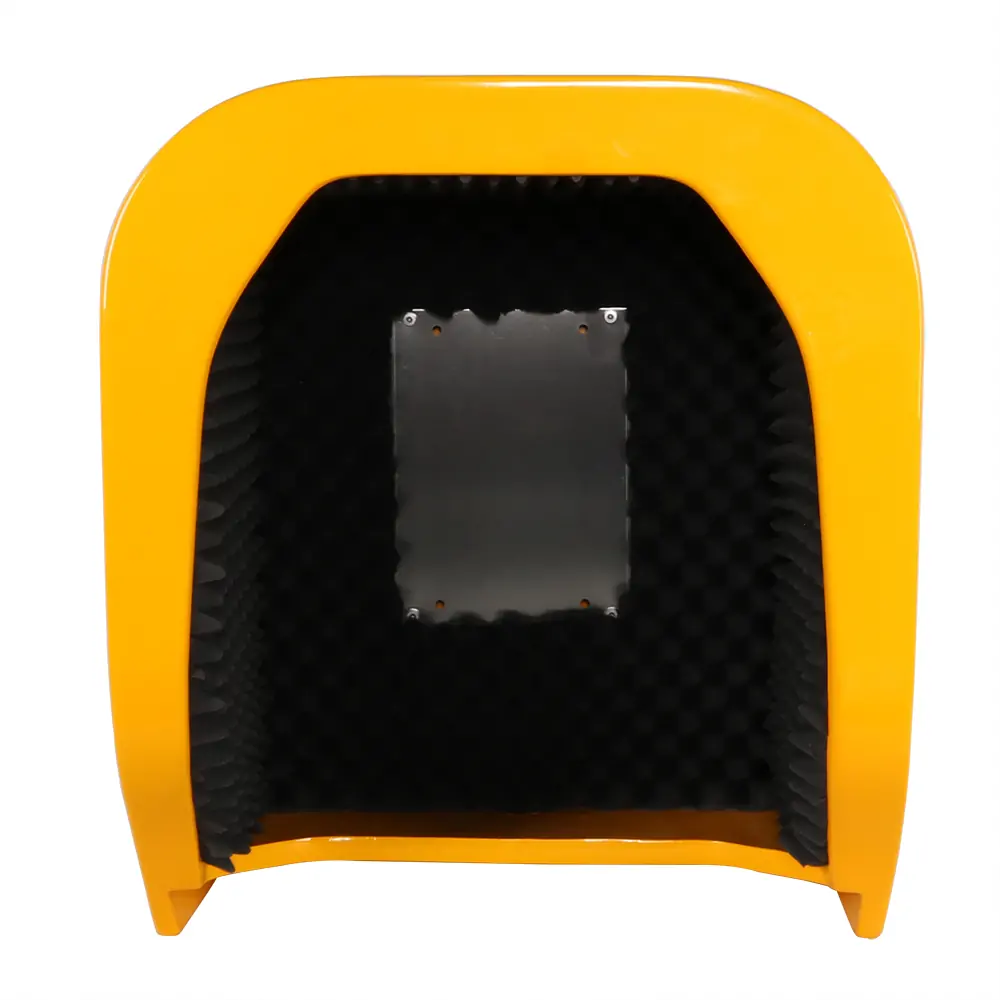

  • Interior of the booth is equipped with a SUS304 mounting backplate ( max load is 30kg,the holes on the backplate can be reserved upon request)

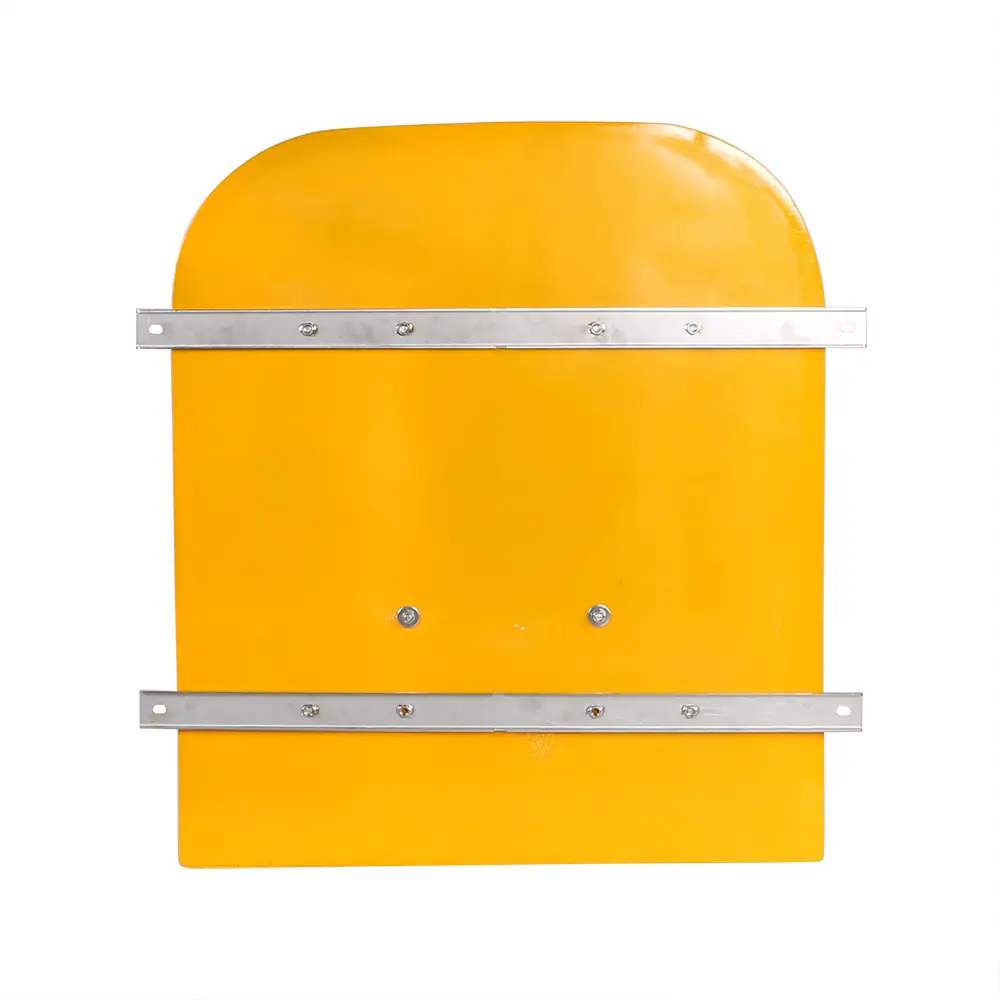

  • Wall-mounted via two SUS304 mounting brackets

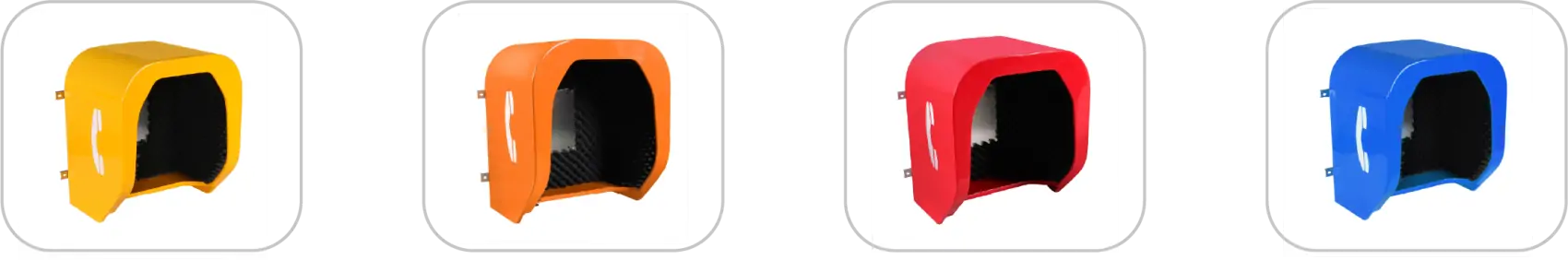

  • Available colors: yellow, orange, red, or blue (other colors/dimensions upon request)

Acoustic Hood

Product Video

Technical Specifications

Shell Material SMC fiberglass enclosure with automotive-grade outdoor paint finish
Acoustic Layer 80mm eco-friendly polyurethane acoustic sponge reduces noise by approximately 23dB
Back Panel Material SUS304
Mounting Brackets Material SUS304
Dimensions 780 × 680 × 500mm (H × W × D)
Net Weight 25kg
Packaging Size 800 x 700 x 550mm (H × W × D)
Gross Weight 50kg, wooden case

Optional Accessories

No related content

Dimensions

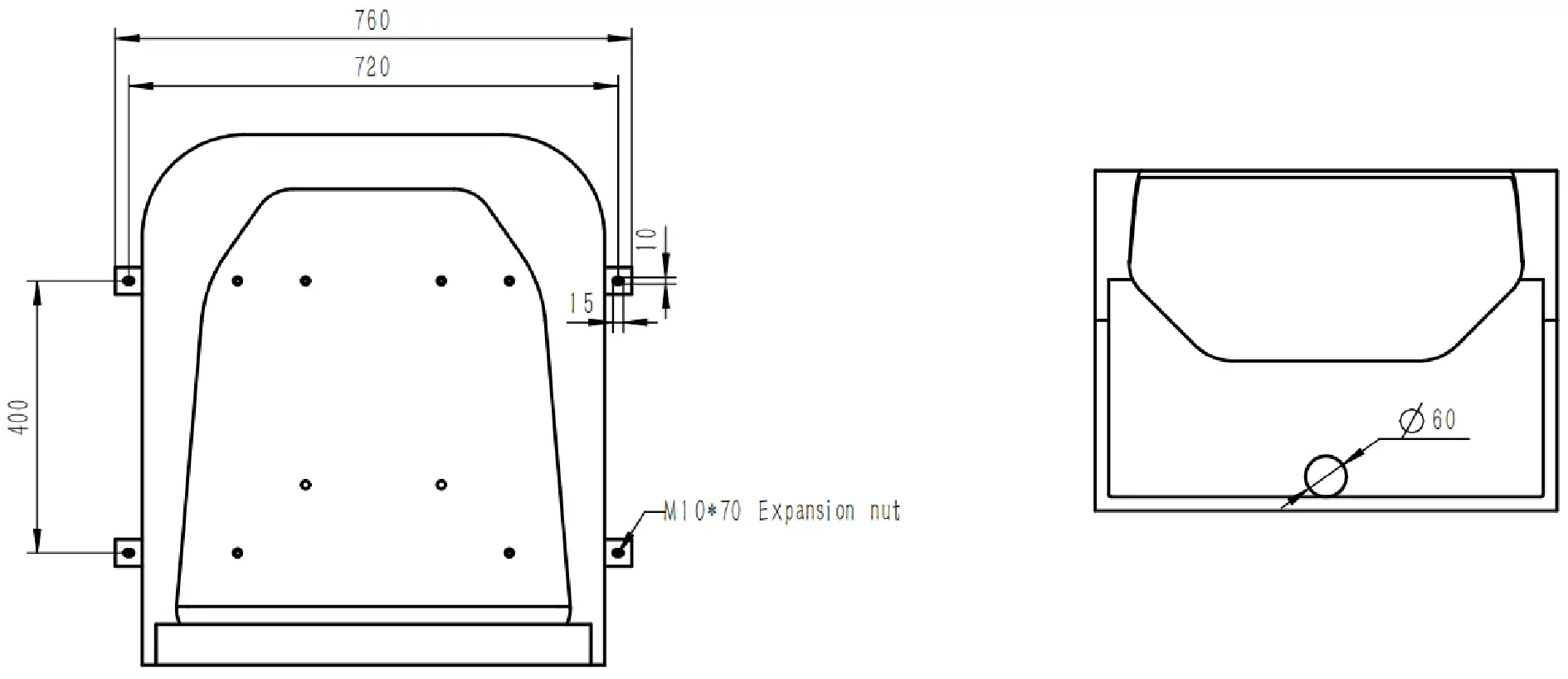

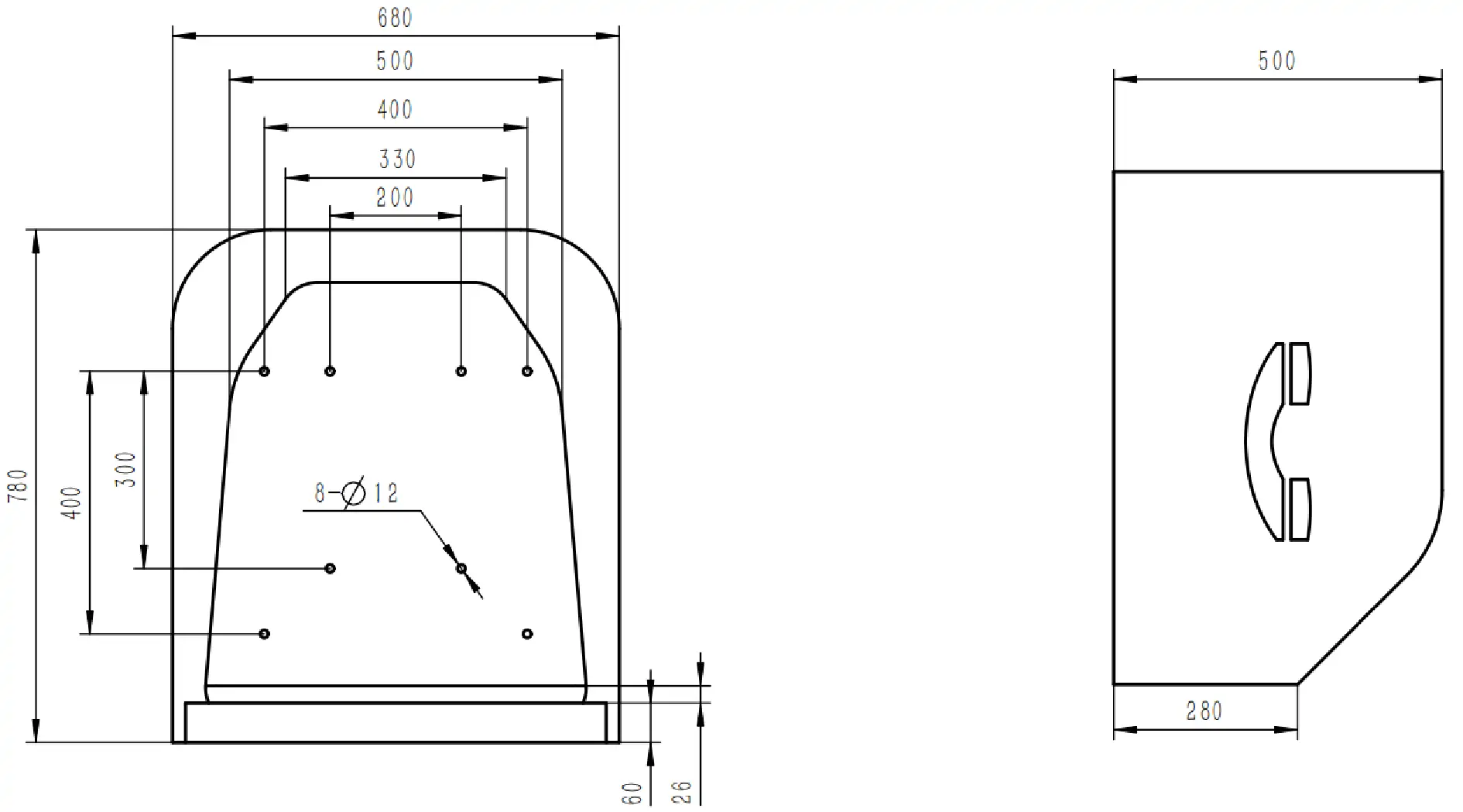

Acoustic Hood JR-TH-01 Dimensions
Acoustic Hood JR-TH-01 Dimensions

Product Recommendations

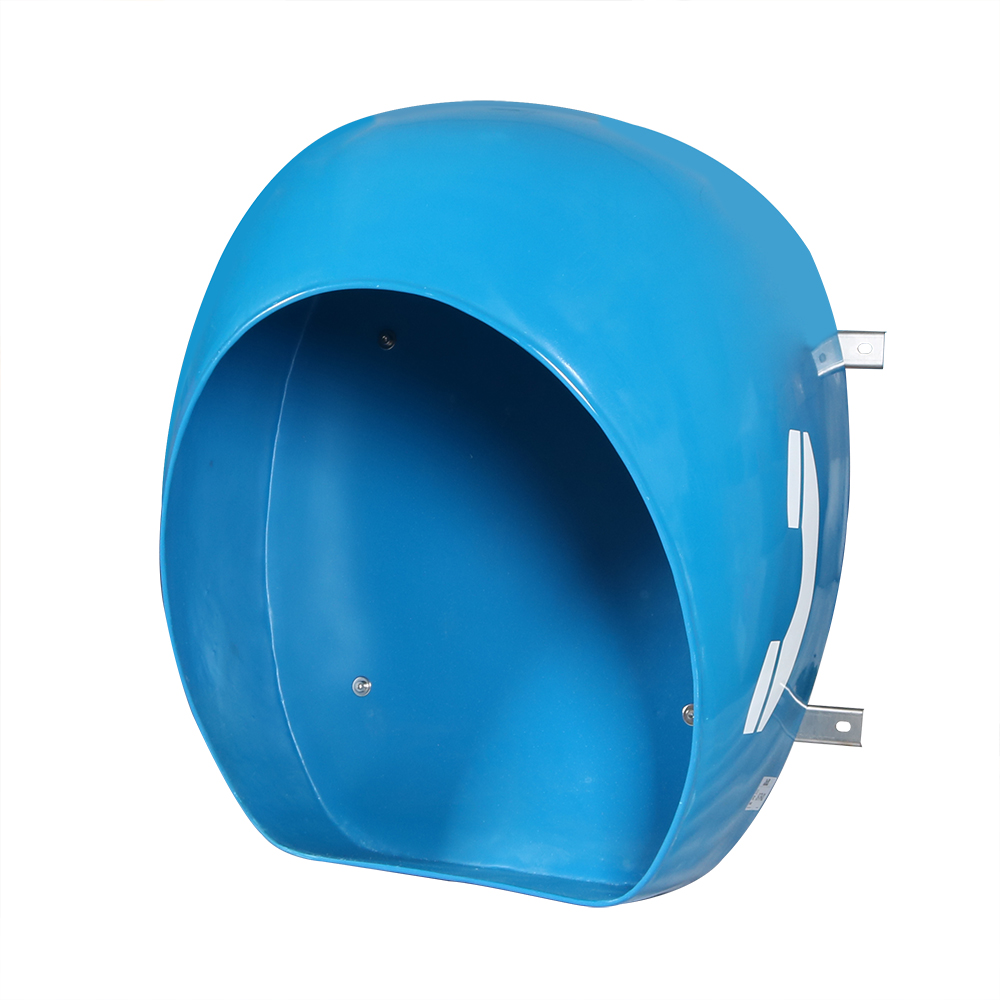

Acoustic Hood JR-TH-12
