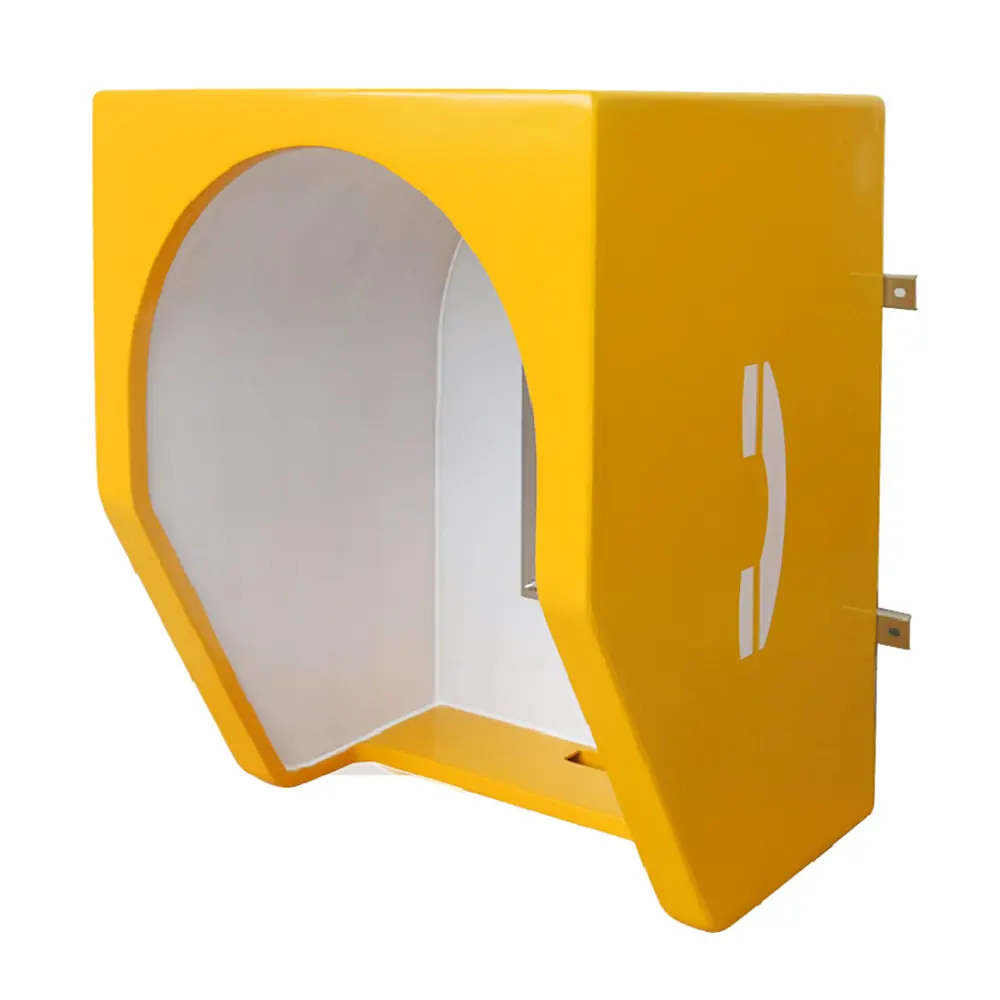

Acoustic Hood JR-TH-01-OC

series Acoustic Hood, molded from glass fiber reinforced plastics (SMC), combines aesthetic appeal with exceptional durability to withstand noise, impact, freezing temperatures, corrosion, high heat, and flames. It is ideal for high-noise environments, including high-noise environments including ships, offshore platforms, power plants, substations, and petrochemical facilities with up to 25dB noise reduction.
Get Pricing/info Download

Main Features

  • Suitable for indoor/outdoor use, waterproof, dustproof, and UV-resistant
  • SMC construction for high strength and impact resistance
  • 3mm white perforated polypropylene acoustic lining
  • Interior of the booth is equipped with a SUS304 mounting backplate ( max load is 30kg,the holes on the backplate can be reserved upon request)

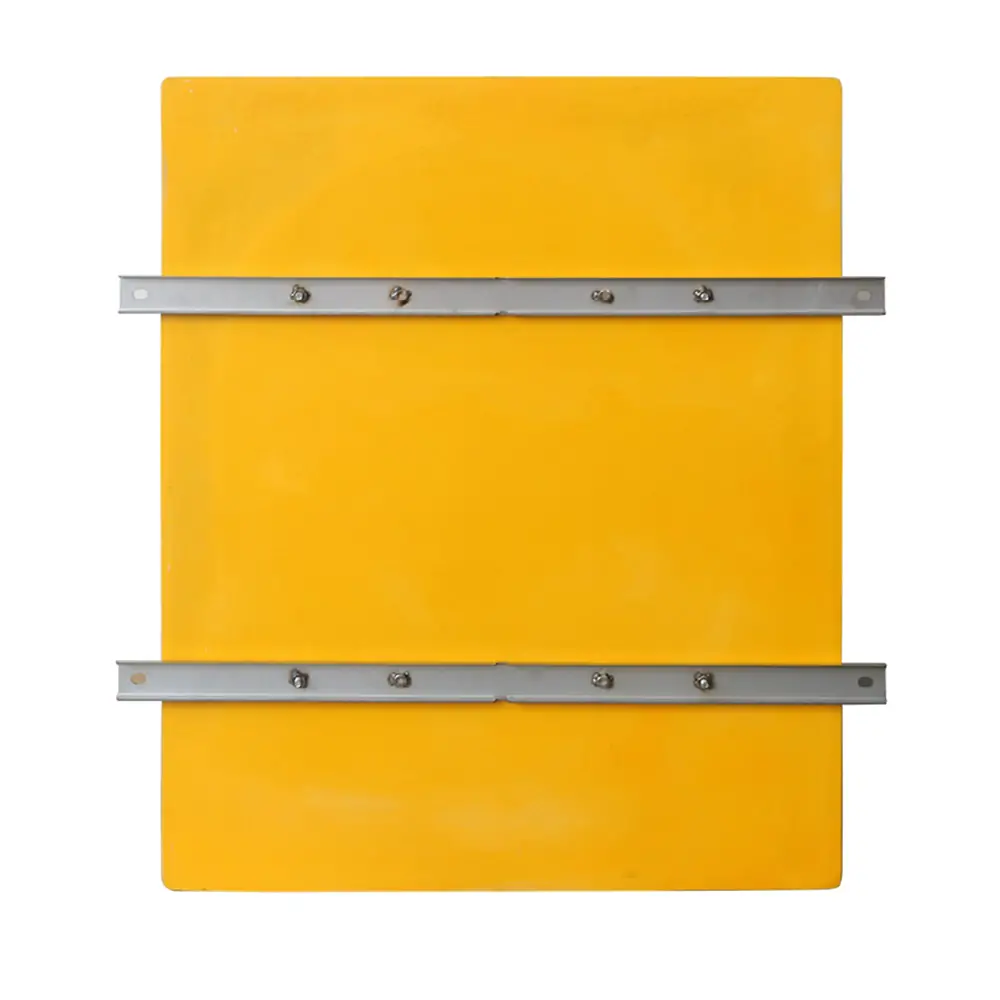

  • Wall-mounted via two SUS304 mounting brackets

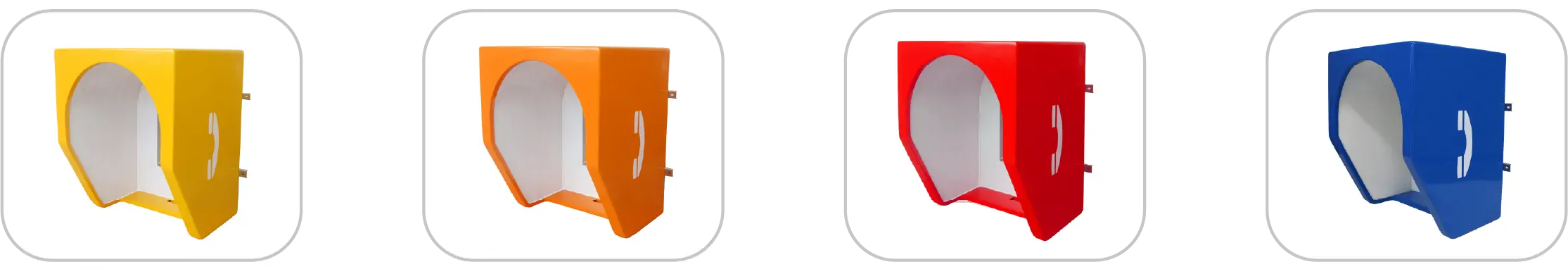

  • Available colors: yellow, orange, red, or blue (other colors/dimensions upon request)

Acoustic Hood JR-TH-01-OC

Product Video

Technical Specifications

Shell Material SMC fiberglass enclosure with automotive-grade outdoor paint finish
Acoustic Layer 3mm white perforated polypropylene lining (≈25dB noise reduction)
Back Panel Material SUS304
Mounting Brackets Material SUS304
Dimensions 850 x 680 x 500mm (H × W × D)
Net Weight 31kg
Packaging Size 980 x 800 x 680mm (H × W × D)
Gross Weight 58kg, wooden case

Product Application

JR-TH-01-OC Dimensions

Optional Accessories

No related content

Dimensions

JR-TH-01-OC Dimensions
