  1. Vandal Resistant Telephone JR209-FK-4G
Vandal Resistant Telephone JR209-FK-4G

Vandal Resistant Telephone JR209-FK-4G

  • Robust housing, constructed of brushed stainless steel
  • Protection level IP54
  • Advanced noise reduction technology for HD calls
  • Corrosion-resistant hardware
  • CE, FCC, RoHS, IK10, ISO9001 standards

proicon

Get Pricing/info Download
Top
Main Features
Applications
Technical Specifications
Application Scenarios
Contact Us

Main Features

Housed in a corrosion-resistant stainless steel/cold-rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communication is maintained at all times.

Housing has a grounding device and is completely electrically isolated from the internal circuit, with a certain electromagnetic shield- ing effect, and the voice is clear and loud during the call, without whistling back. Armored "cord" provides additional resistance to vandalism or heavy industrial use.

The series telephones are designed to meet the needs of clients who experience losses due to vandalism. Ideal for parking lots, prisons, airports, railway, metro, ATMs machines, platforms, hospitals, police stations, shopping mall, stadiums, etc.


  • Robust housing, constructed of brushed stainless steel
  • Protection level IP54
  • Advanced noise reduction technology for HD calls
  • Corrosion-resistant hardware
  • CE, FCC, RoHS, IK10, ISO9001 standards

Applications

Insert the SIM card into the 4G phone and connect to the operator's network to make calls

JR209-FK-4G APPLICATIONS

Product Video

Technical Specifications

4G Specifications
Power supply 12V DC
Adapter input 7.4 V-12V DC
Power consumption Idle 0.3W / Working 1.5W
Communication mode 4G
Working frequency Depends on modules
Ringing tone 90 dB (A) @ 1 meter
Configuration method Remote configuration via SMS, allows management from a central location
Configuration Remote monitoring / Auto-dial numbers
Time out Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably
Diagnostic function Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message
Antenna Quad-band SMA male, externally mounted with 2 m cable
Environment temperature Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C
M.T.B.F. Exceeds 50,000 hours under normal operating conditions
4G Module EC25
Module EC25-E EC25-EU / EUX EC25-J EC25-V
Region EMEA/Korea/Thailand/India EMEA/Thailand Japanese America Verizon
Frequency
LTE-FDD B1/B3/B5/B7/B8/B20 B1/B3/B7/B8/B20/B28A B1/B3/B8/B18/B19/B26 B4/B13
LTE-TDD B38/B40/B41 B38/B40/B41 B41 /
WCDMA B38/B40/B41 B1/B8 B1/B6/B8/B19 /
GSM/EDGE B3/B8 B3/B8 / /
GNSS GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
Module EC25-A EC25-AF / AFX / AFXD (Data-only) EC25-AUX EC25-MX
Region North America North America Latin America/Australia/New Zealand Mexico
Frequency
LTE-FDD B2/B4/B12 B2/B4/B5/B12/B13/B14/B66/B71 B1/ B2/B3/B4/B5/B7/B8/B28 B2/B4/B5/B7/B28/B66
LTE-TDD / / B40 /
WCDMA B2/B4/B5 B2/B4/B5 B1/B2/B4/B5/B8 B2/B4/B5
GSM/EDGE / / B2/B3/B5/B8 /
GNSS GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
/

Product Application

Metro

Metro

Airport

Airport

Bus station

Bus station

Ship

Ship

Business center

Business center

Prison

Prison

Hospital

Hospital

School

School

Optional Accessories

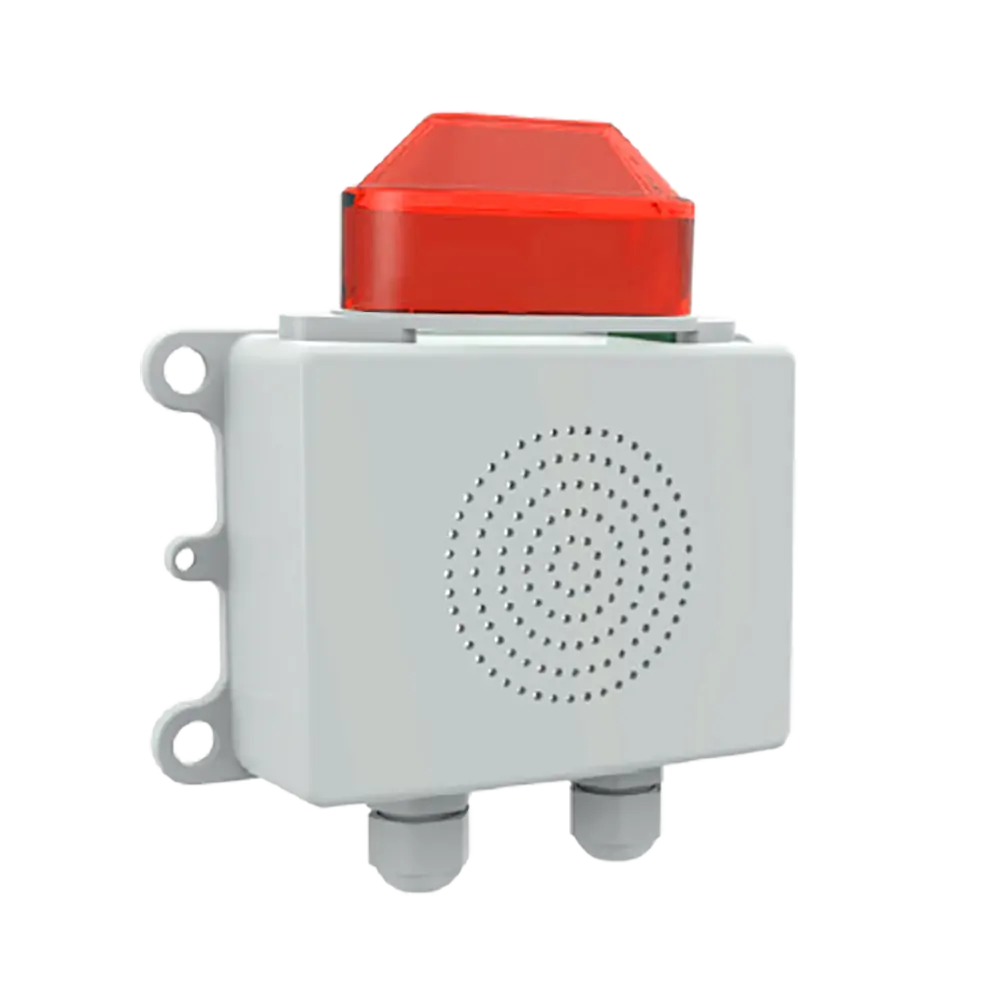

Acousto-optical Alarm JR-BS-01

JR-BS-01

Broadcast Horn JR-HSA-10/20/25/30/35

JR-HSA-10/20/25/30/35

LED Beacon Light JR-LP-02

JR-LP-02

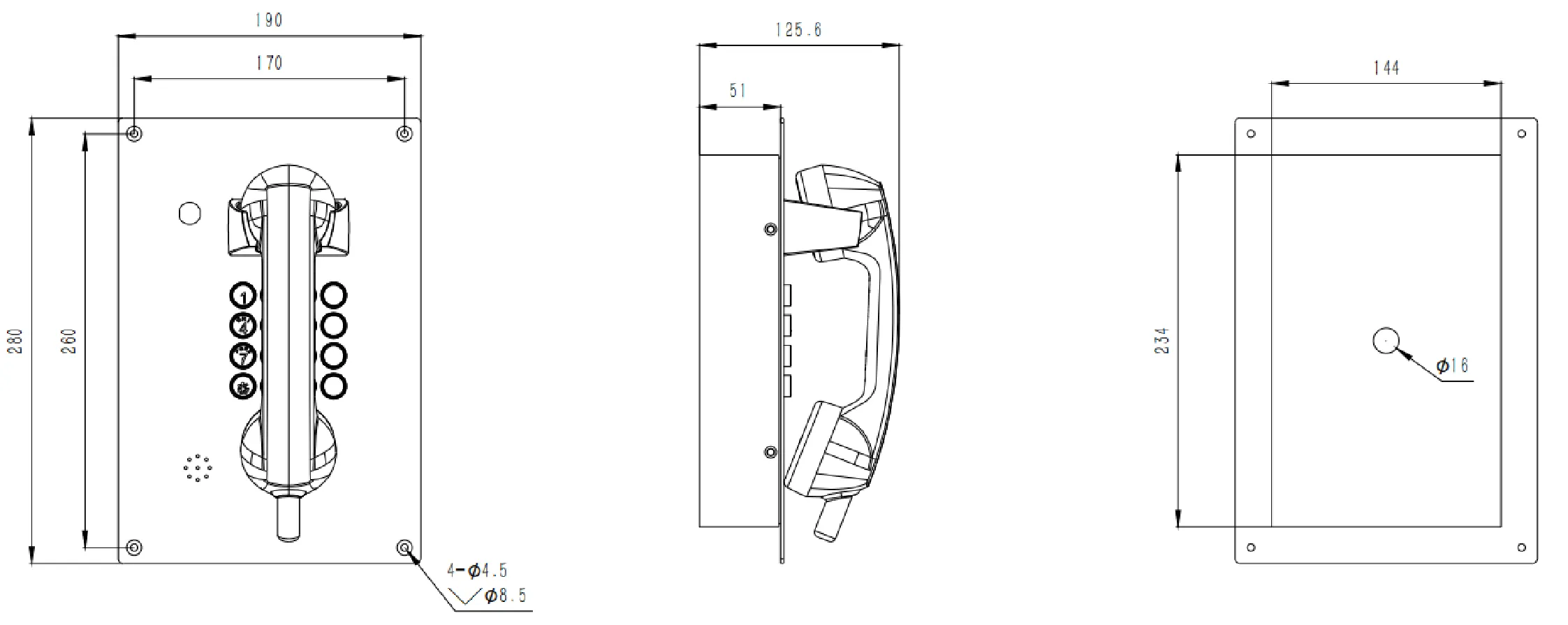

Dimensions

JR209-FK-4G Dimensions
Package
Unit size 280*190*125.6 (mm)
Shipping dimensions 340*240*180 (mm)
Packaging materials Foam padding, carton
Weight Net weight: 3 kg / Gross weight: 4 kg

Product Recommendations

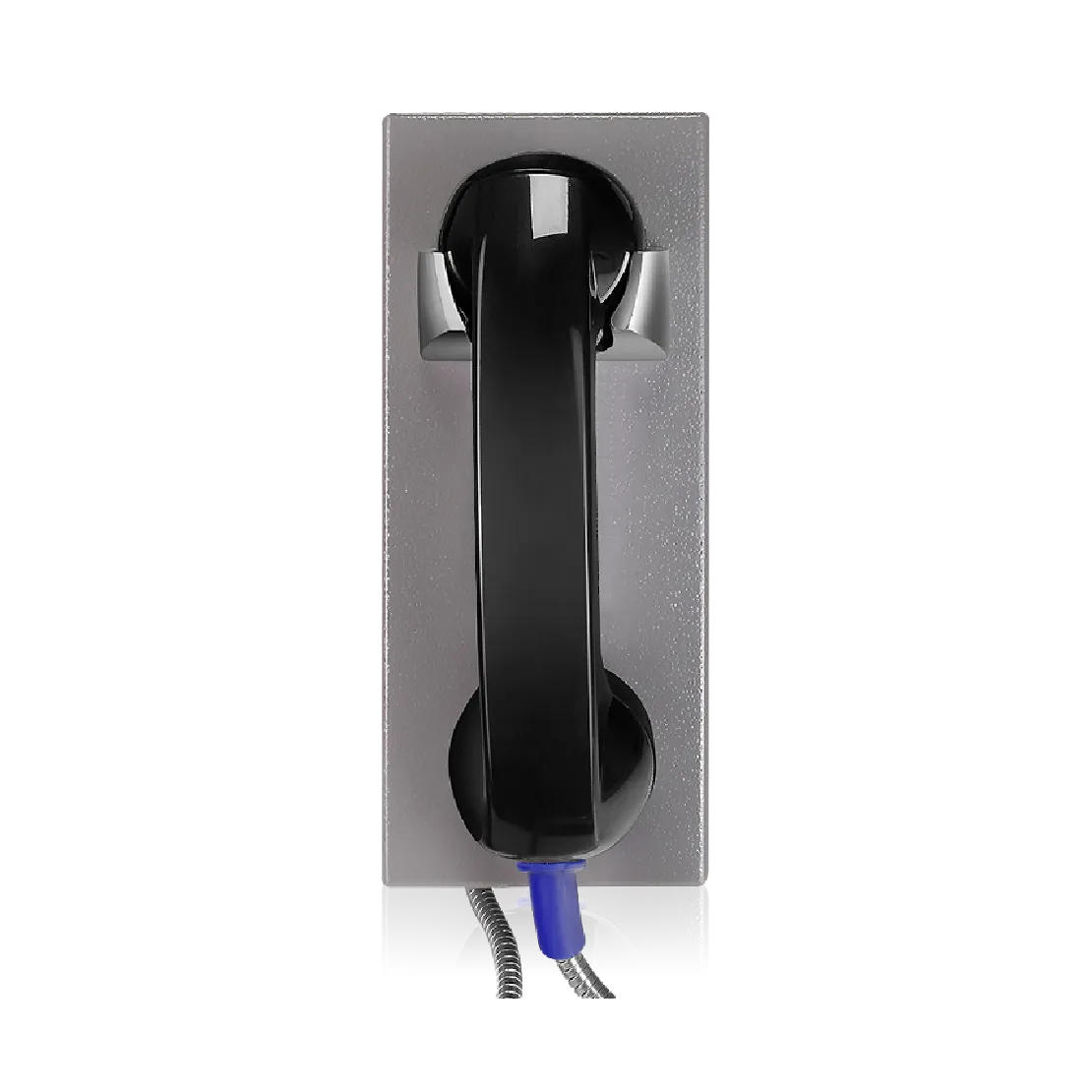

Vandal Resistant Telephone JR202-CB-4G

Vandal Resistant Telephone JR202-CB-4G

Housed in a corrosion-resistant stainless steel/cold-rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communication is maintained at all times.

View details

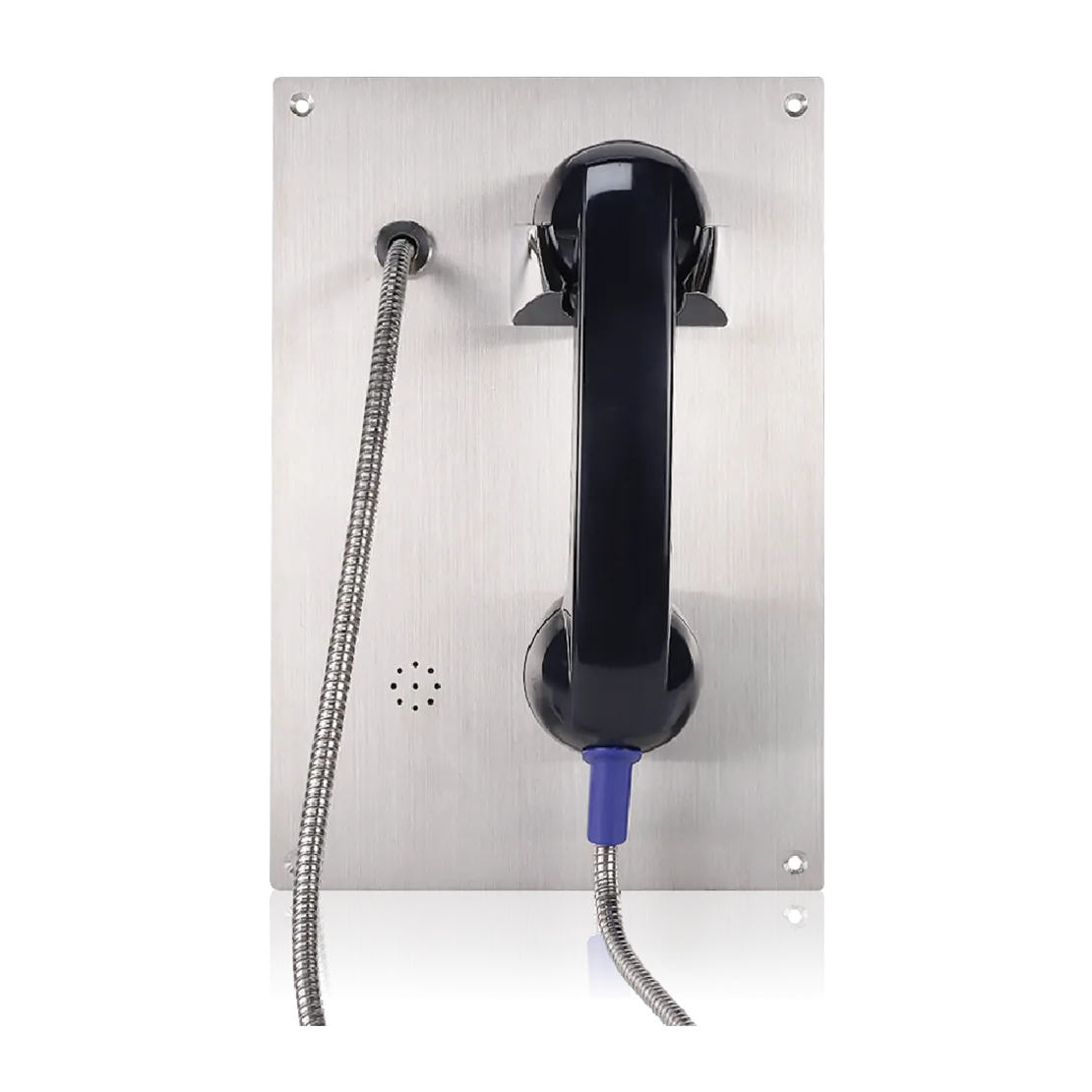

Vandal Resistant Telephone JR208-CB-4G
