  1. Explosion Proof Horn JREX-HSA
Explosion Proof Horn JREX-HSA

Explosion Proof Horn JREX-HSA

  • Stainless steel housing
  • IP66 level of protection
  • Drop resistant receiver and receiver cord
  • Wall-mounted
  • CE, FCC, RoHS
Get Pricing/info Download
Top
Main Features
Applications
Technical Specifications
Contact Us

Main Features

JREX-HSA explosion-proof loudspeaker is an explosion-proof horn loudspeaker suitable for inflammable and explosive places. It can be used with various power amplifiers and sound amplification equipment. It can also be used for IP equipment access systems for amplification calls or alarms. The sound transmission part of the equipment adopts the most advanced stainless steel wire mesh explosion-proof component in China. The component has the characteristics of low sound attenuation, large flow capacity, high mechanical strength, and large explosion-proof safety factor.

It is suitable for inflammable and explosive places in the petroleum, chemical, textile, military, electric power, metallurgy, pharmaceutical and other industries, and is used as a terminal device for production scheduling, communication, and fire broadcasting.

Explosion-proof standard

Ex db IIC T6/T5 Gb,Ex tb IIIC T80℃/T95℃ Db IP66

Product Video

Technical Specifications

SIP Analog
Power supply POE / DC12V Audio signal voltage AC70V, AC110V
Power 15W, 20W, 25W, 30W, 35W Power 15W, 20W, 25W, 30W, 35W
Impedance 8Ω Impedance 8Ω
Effective frequency range 250Hz~3400Hz Effective frequency range 250Hz~3400Hz
Sound level 95-110dB Sound level 95-110dB
Relative humidity ≤95% without condensation Relative humidity ≤95% without condensation
Atmospheric pressure 80kPa~110kPa Atmospheric pressure 80kPa~110kPa
Outlet thread M20*1.5 Outlet thread M20*1.5

Optional Accessories

No related content

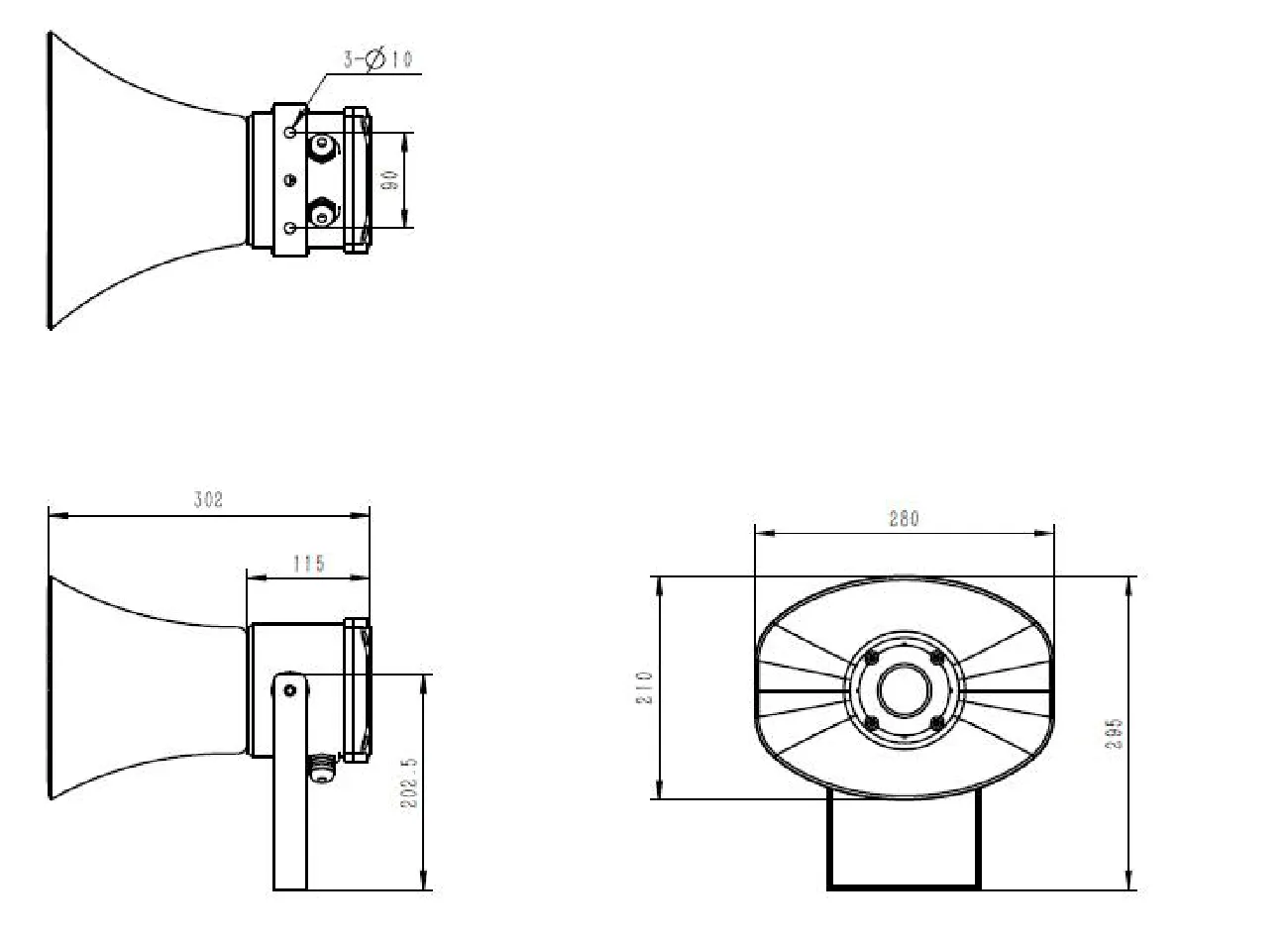

Dimensions

Explosion Proof Horn JREX-HSA
Product dimensions: 302 × 280 × 295 mm (L × W × H)
Packaging material: EPE foam lining + carton box
