How Tunnel Communication Works: A Full Breakdown

With the rapid development of urban rail transit, highway tunnels, and underground infrastructure, tunnel communication systems have become a critical technology for ensuring safety and operational efficiency. However, the unique environment of tunnels presents significant challenges for communication.

J&R Technology Limited, a premier designer and manufacturer of industrial telephones and communication systems, has developed a complete Tunnel Communication Solution featuring SIP and 4G technology designed specifically for underground environments.

In this article, we will provide a full breakdown of tunnel communication, from its definition to future innovations.


Russia Moscow Central Circle Line Railway Tunnel, JR waterproof telephone JR101-FK

What Is Tunnel Communication

Tunnel communication refers to the specialized systems and technologies that enable voice and data transmission inside tunnels, whether for railways, highways, metros, or utility infrastructures. Unlike ordinary communication systems, tunnel communication must function in enclosed, obstructed, and hazardous environments where traditional wireless signals are weak or blocked.

The main purpose of tunnel communication systems includes:

• Operational communication – ensuring smooth coordination between operators, drivers, and control centers.
• Emergency communication – enabling passengers, workers, or first responders to quickly connect with help during accidents or fires.
• Monitoring & control – supporting integration with CCTV, SCADA, and alarm systems for real-time safety management.
• Public communication – allowing announcements, paging, and guidance within tunnels.

A well-designed tunnel communication system is not only a safety requirement but also a critical factor in efficient tunnel operations.

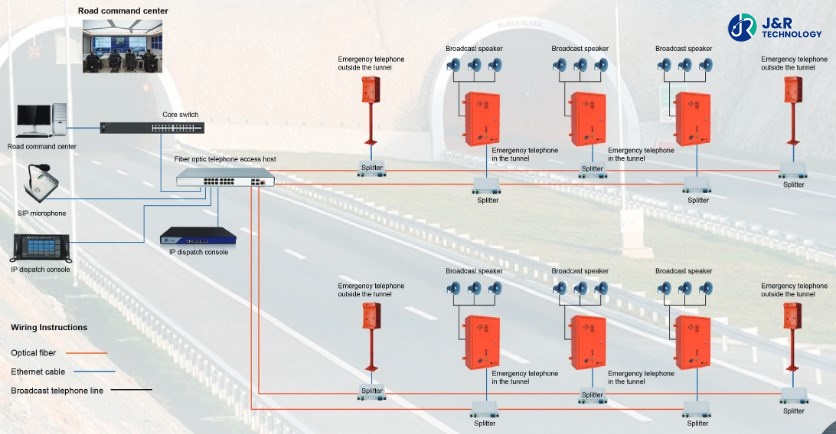

JR Communication Solution for Tunnel

Unique Challenges in Tunnels

Unlike open environments, tunnels pose several unique communication challenges:

1. Signal Blockage and Attenuation

Thick concrete walls, underground soil layers, and metal reinforcements block normal radio frequency signals, making it difficult for cellular or Wi-Fi signals to penetrate.

2. Long and Narrow Spaces

Tunnels often extend for kilometers, with limited access points. This means that communication equipment must cover large distances without loss of clarity.

3. Harsh Environmental Conditions

High humidity, dust, vibration, and temperature variations can damage regular communication devices. Equipment must be rugged, waterproof, and dustproof with protection ratings like IP66–IP67.

4. Emergency Scenarios

Fires, accidents, and power failures demand a system that is reliable, redundant, and failsafe even under extreme conditions.

5. Interference with Other Systems

Tunnels often have multiple systems running simultaneously—ventilation, lighting, signaling, and power—which may cause electromagnetic interference.

Because of these challenges, tunnel communication requires specialized industrial-grade solutions rather than consumer-level devices.

Key Technologies Involved

Modern tunnel communication systems rely on a hybrid mix of technologies to ensure consistent and reliable coverage:

1. SIP (Session Initiation Protocol)

• SIP is a widely used technology for voice over IP (VoIP) communication. It is highly effective in tunnel environments due to its flexibility and scalability.

• SIP-based systems allow for voice and video communication over IP networks, which can be integrated with other safety systems such as CCTV and real-time monitoring.

• Emergency communication via SIP telephones ensures smooth connectivity even in tunnels with IP infrastructure, facilitating instant alerts and coordination.

• SIP is particularly effective for stationary installations where continuous communication and data transmission are essential.


2.4G

• 4G is a wireless communication technology that offers high-speed data transfer, which is crucial for applications like real-time monitoring, remote operations, and video surveillance.

• 4G is ideal for tunnels where traditional cable infrastructure is impractical, allowing workers and emergency responders to stay connected via mobile devices.

• 4G networks can handle multiple connections simultaneously, ensuring that communication is uninterrupted even during emergencies or high-traffic periods.

• 4G provides the flexibility to transmit large volumes of data for integrated systems such as IoT sensors, alarms, and fire monitoring systems.

Both SIP and 4G technologies play critical roles, but they serve distinct needs within the tunnel communication system. SIP is designed for stationary communication, while 4G offers wireless mobility for devices in motion or for areas where wired connections are not feasible.

System Design for Reliability

Designing a rugged systems engineering, reliable tunnel communication system requires careful planning and integration:

1. Redundancy and Fail-Safe Architecture

• Dual power supply and backup lines ensure communication is never interrupted.
• The SIP and 4G systems are typically deployed as independent backups, meaning if one system fails, the other can still operate.

2. Strategic Placement of Devices

• Emergency telephones must be installed at intervals (e.g., every 150 meters) for passenger access.
• Loudspeakers and signal lights are placed at key points for announcements and warnings.

3. Environmental Protection

• Devices must meet IP66/IP67 waterproof and IK10 vandal-proof standards.
• Explosion-proof telephones and loudspeakers are essential in petrochemical or hazardous tunnels.

4. Integration with Central Control Systems

• A tunnel communication system must connect seamlessly with SCADA, fire alarms, and CCTV systems.
• This integration allows operators to detect emergencies in real time and coordinate responses.

5. Ease of Maintenance

• Equipment should feature a modular design for quick replacement.
• Remote monitoring via IP ensures faults are detected early, minimizing downtime.

By combining rugged hardware with smart system design, companies like the industrial phone leader J&R Technology Limited ensure long-term reliability in the most demanding tunnel projects.

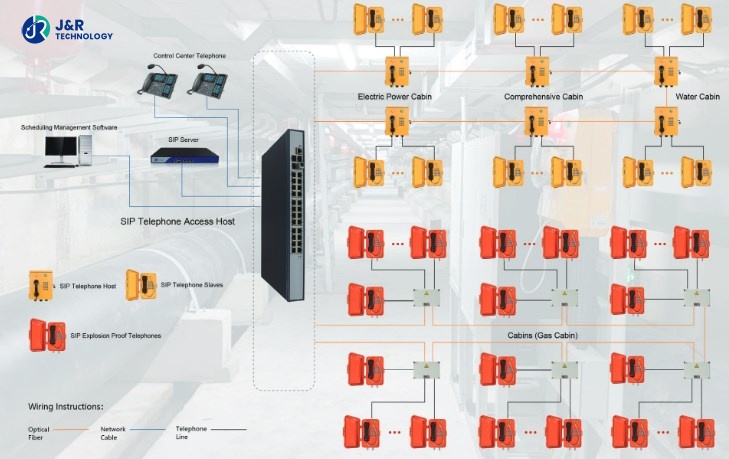

JR Communication Solution for UtilityTunnel

Future Tunnel Communication Solutions

The future of tunnel communication is moving toward smart, connected, and automated systems:

1. 5G Connectivity

• Ultra-low latency and high bandwidth will allow real-time video communication, AR-assisted maintenance, and intelligent monitoring.

2. IoT Integration

• Smart sensors for air quality, fire detection, and structural monitoring will be linked to communication systems.
• Enables predictive maintenance and early warning systems.

3. Unified Command Platforms

• Future systems will integrate all communication channels (SIP, 4G) into a single unified platform.
• Operators will have a centralized dashboard to manage voice, video, data, and alarms simultaneously.

4. Sustainability and Green Design

• Energy-efficient equipment and solar-powered emergency telephones may be introduced for eco-friendly tunnel projects.

With these advancements, tunnel communication will continue to evolve as a backbone of safe and efficient underground infrastructure worldwide.

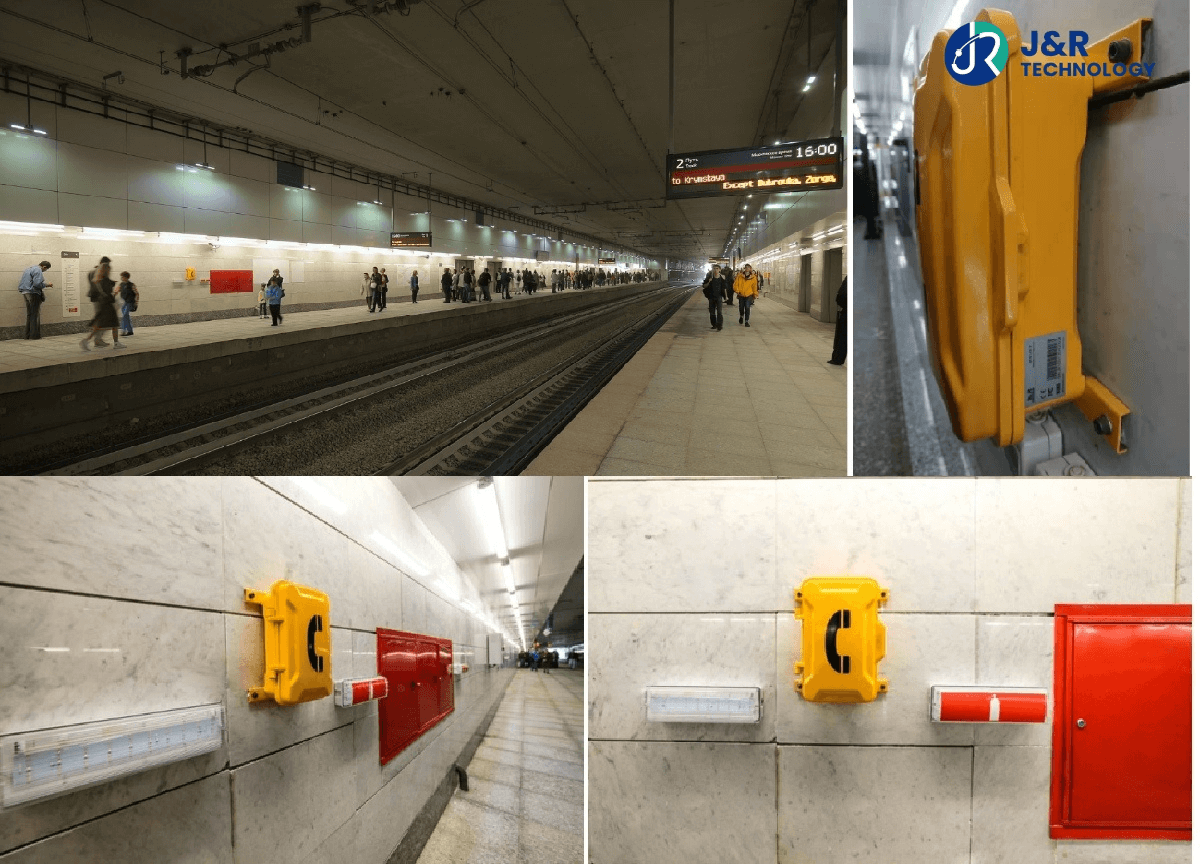

Turkey Ikitelli Atakoy Metro Project, JR Weatherproof Emergency Telephone

Conclusion

A tunnel communication system is not just about enabling conversation—it is a mission-critical lifeline that ensures safety, coordination, and efficiency inside underground environments. From SIP and 4G technologies to reliable design and integration, these systems are essential for safe and effective tunnel operations.

J&R Technology Limited continues to lead in this field by providing integrated communication solutions tailored for tunnels, railways, highways, and industrial sites. With 13+ years of expertise, the company delivers products that are robust, certified, and trusted worldwide.
